Ladder Trolley

Ladder Trolley – Others from BSM Racking Singapore

Others

Ladder Trolley

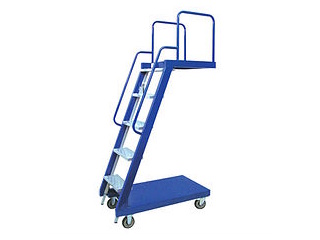

Ladder Trolley combines goods transport and raised picking access, with a gas spring that secures it when stepped on for Singapore warehouse use.

  • Width: 555mm (Overall Width)
  • Origin: Singapore
  • Materials: Steel
  • Wheel: 5″ Swivel Castor / Swivel Brake
  • Loading: Top 50kgs UDL / Bottom 150kgs UDL
  • Capacity: 350 kgs
  • Colour: Epoxy Powder Coated

Product Description

For retail shops and warehouses in Singapore, the Ladder Trolley helps staff pick goods from storage levels between 2.1 m ~ 3 Meters high.

Combining a ladder and trolley in one unit lets staff move goods and reach stock without switching equipment. This is particularly useful when picking above 2.1 metres.

The upgraded design replaces the metal spring with a gas spring. Stepping onto a tread automatically holds the ladder in position to stop it moving.
SKU Size (a)
Overall Height
Size (b)
Floor to Deck
Size (c)
Internal Storage
Size (d)
Deck Storage
Size (e)
Base Length
Colour
11-LT-5 2040mm 1573mm 1283mm 486mm 1070mm Blue
11-LT-3 1136mm 1022mm 730mm 715mm 1070mm Beige

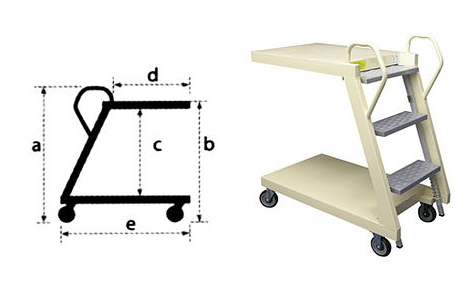

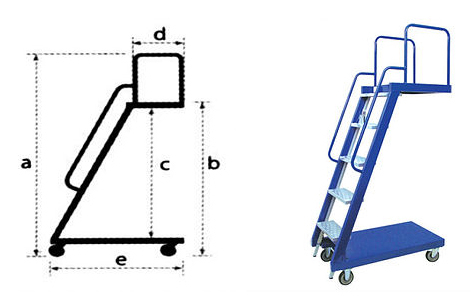

Ladder Trolley — LT-5 five-step model Ladder Trolley — LT-3 three-step model
LT-5: five-step Ladder Trolley LT-3: three-step Ladder Trolley
