Mobile Compactor

Mobile Compactor from BSM Racking makes heavy cabinets easier to move, with smooth geared operation and secure storage for Singapore workplaces.

Request a Quote +65 8287 5431 Email Us

Product Description

The mechanical Mobile Compactor uses differing gear ratios to move its cabinets with a gentle turn, reducing the effort needed to shift a large unit. Its gears and roller chains have been tested for strength. Together, these features give BSM Racking customers in Singapore smoother, quieter cabinet movement with less force required from the operator.

Mobile Compactor mechanical cabinet storage arrangement, project view 1

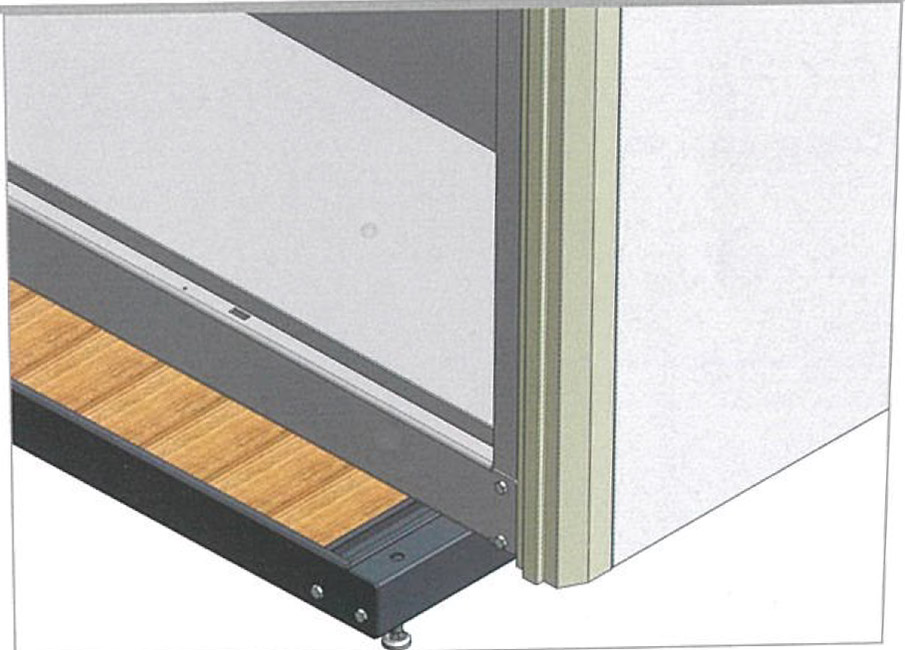

Mobile Compactor mechanical cabinet storage arrangement, project view 2

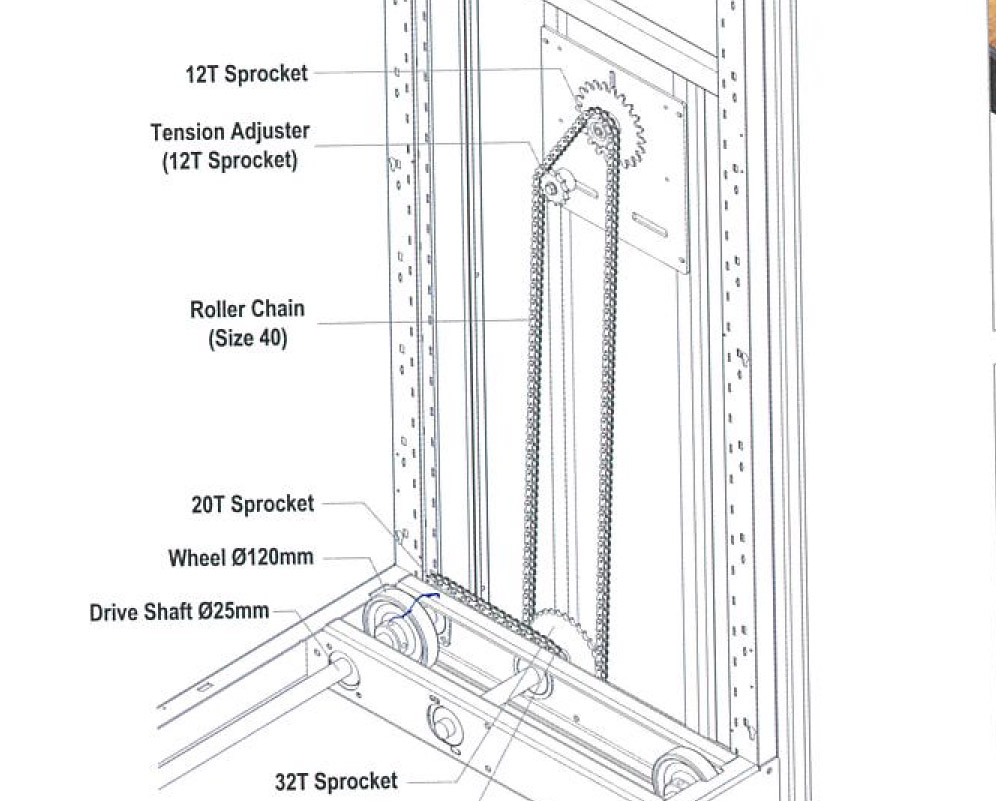

Mobile Compactor mechanical cabinet storage arrangement, project view 3

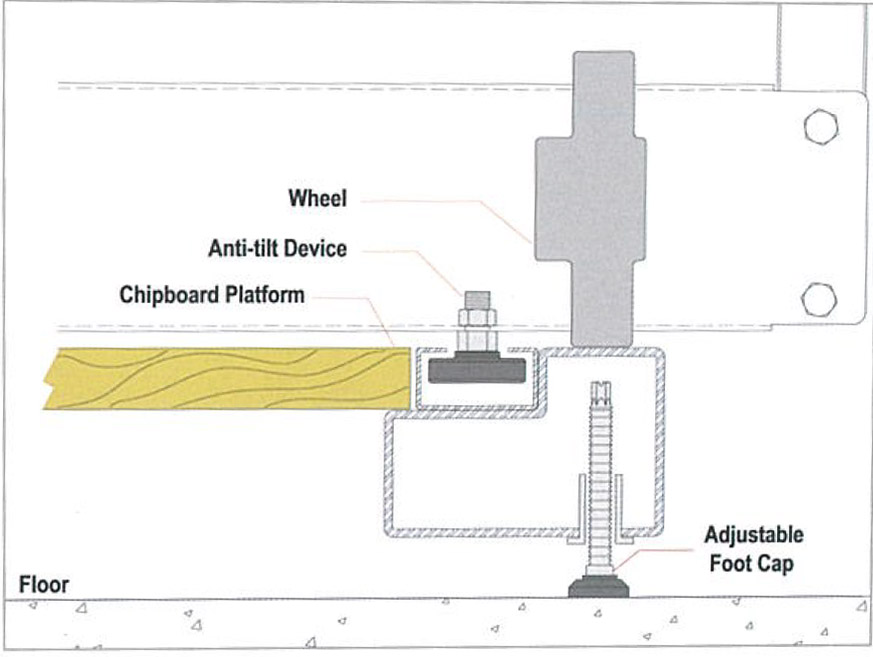

Adjustable foot caps support the platform without drilling
Laser-cut rails manufactured from 3.0mm cold rolled steel
Deionised-water rinsing precedes the epoxy powder coating treatment
Heavy-duty die-cast iron wheels protected by an anti-rust zinc coating
Locking is controlled centrally
Strong industrial wheels designed for quiet movement

Types	Specifications
Material	Cold rolled steel
Finish	Epoxy powder coating
Shelf size	897(W) x 361(D) x 25(H)
No. of shelf	4 pieces per bay
Loading per shelf	70kg UDL
Aisle size	780 / 800mm
Material thickness	Back panel: 0.7mm, Shelf: 0.7mm, Side panel: 0.7mm, Base frame: 2mm, Post: 1.5mm, Top panel: 1.0mm, Front panel: 0.8 / 1.0mm
Rail with platform	Rail: 3mm cold rolled steel with laser cut process / Complete with adjustable foot cap, Platform: 18mm chipboard
Post	C-channel post with slots in 25mm increment
Anti tilt mechanism	Nylon guide D40mm
Wheel	Iron die casting with anti-rust zinc coating, Loading: 1000kg / wheel

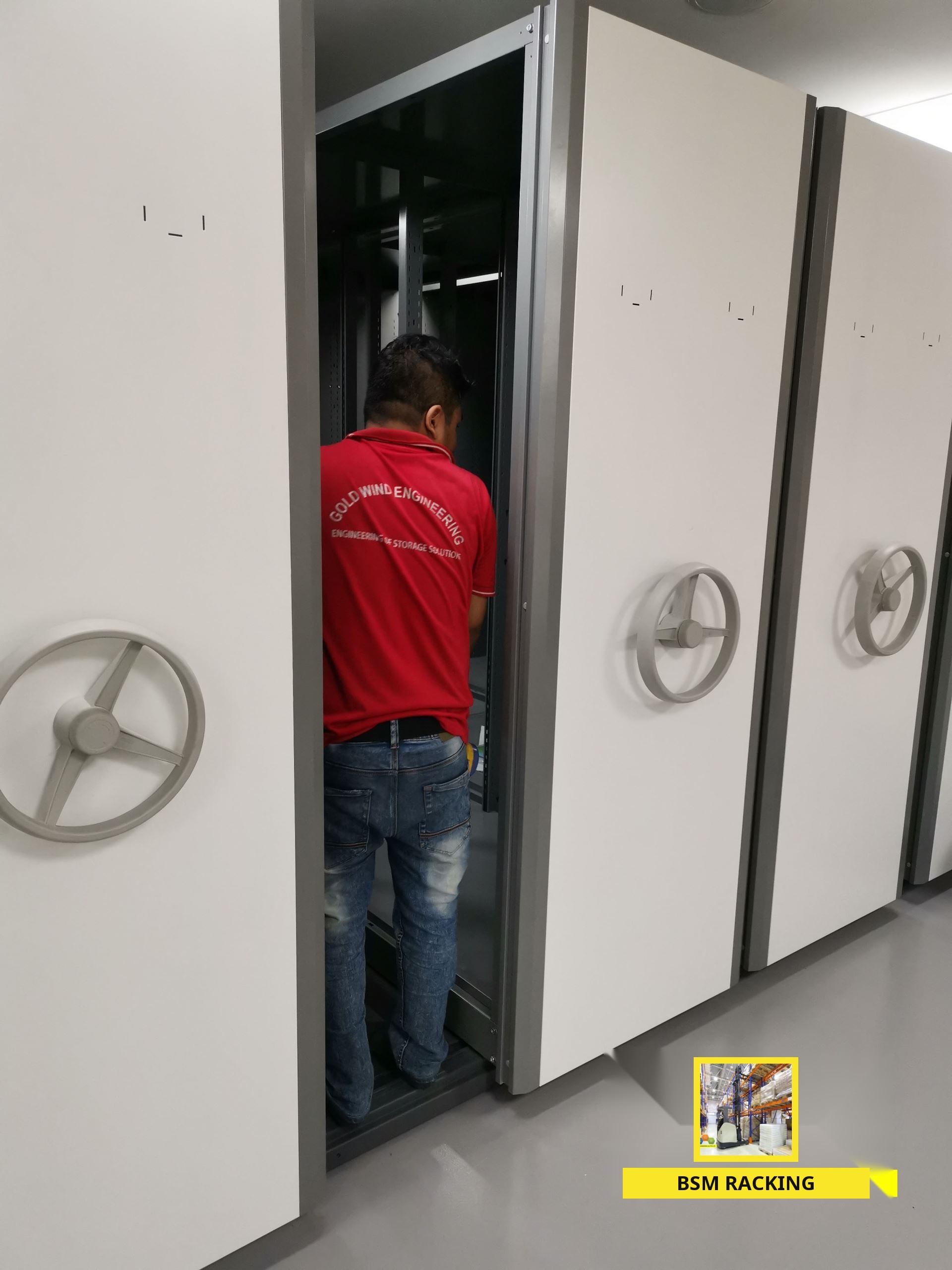

Mobile Compactor mechanical cabinet storage arrangement, project view 4

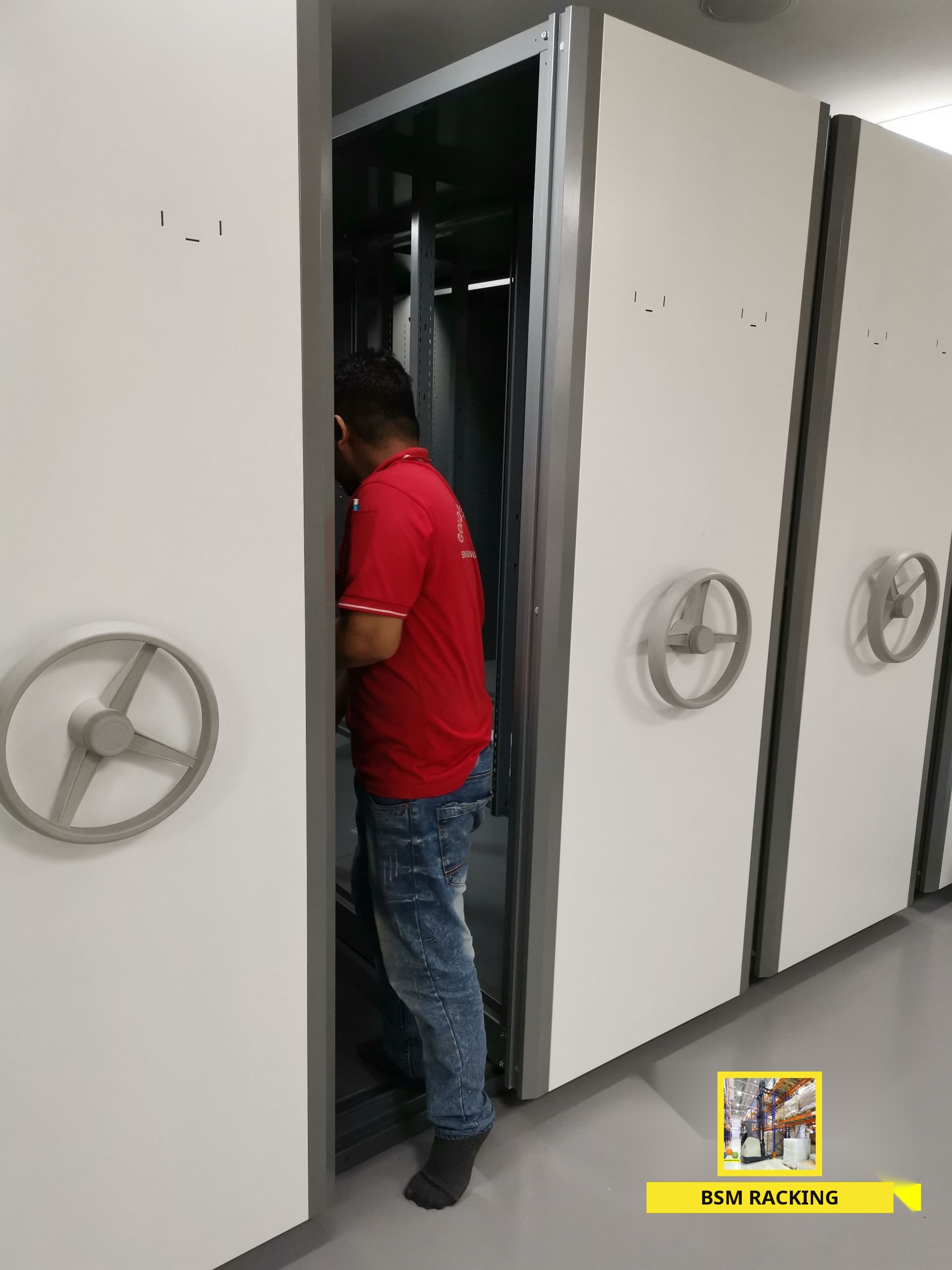

Mobile Compactor mechanical cabinet storage arrangement, project view 5

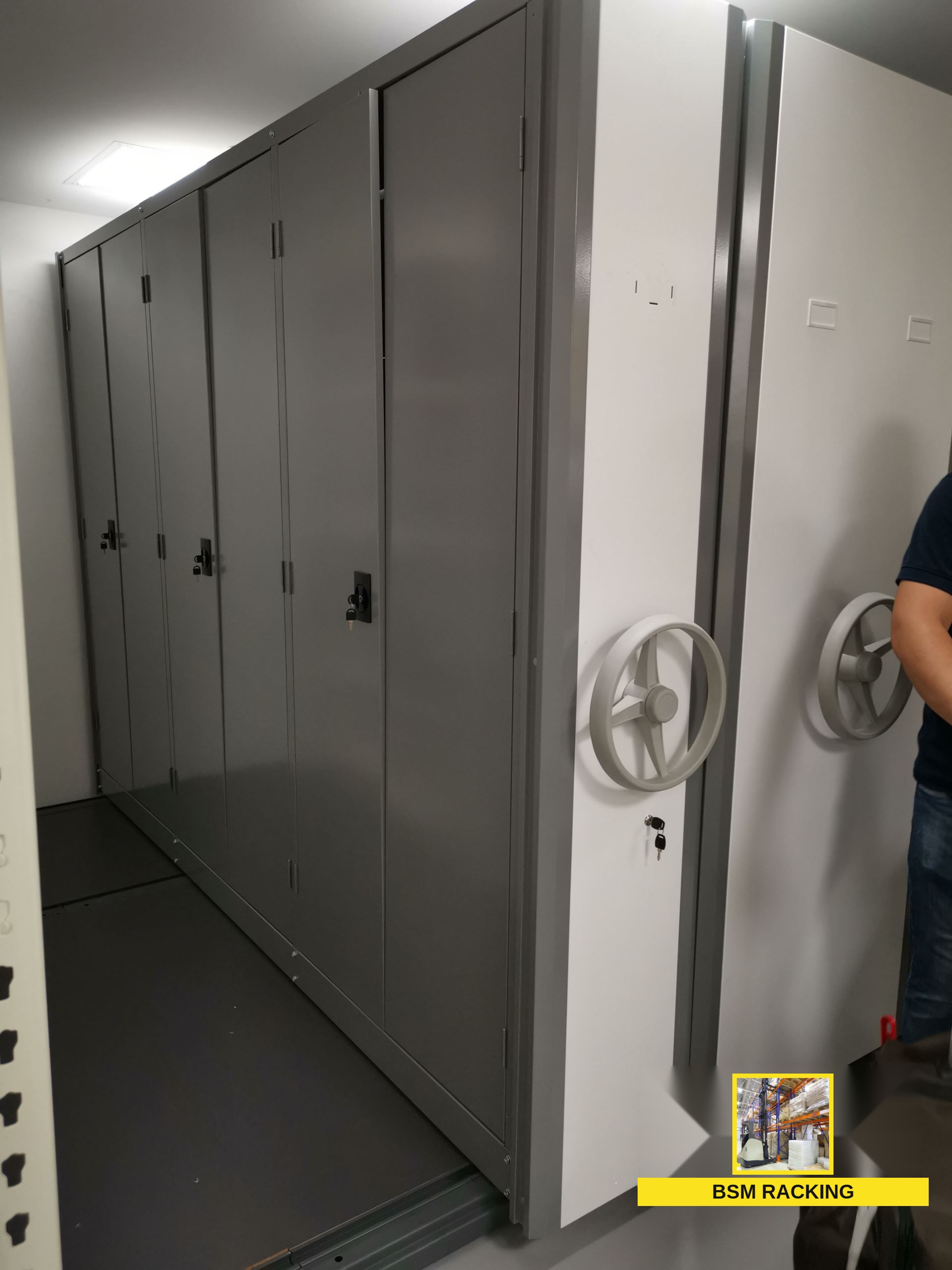

Mobile Compactor mechanical cabinet storage arrangement, project view 6

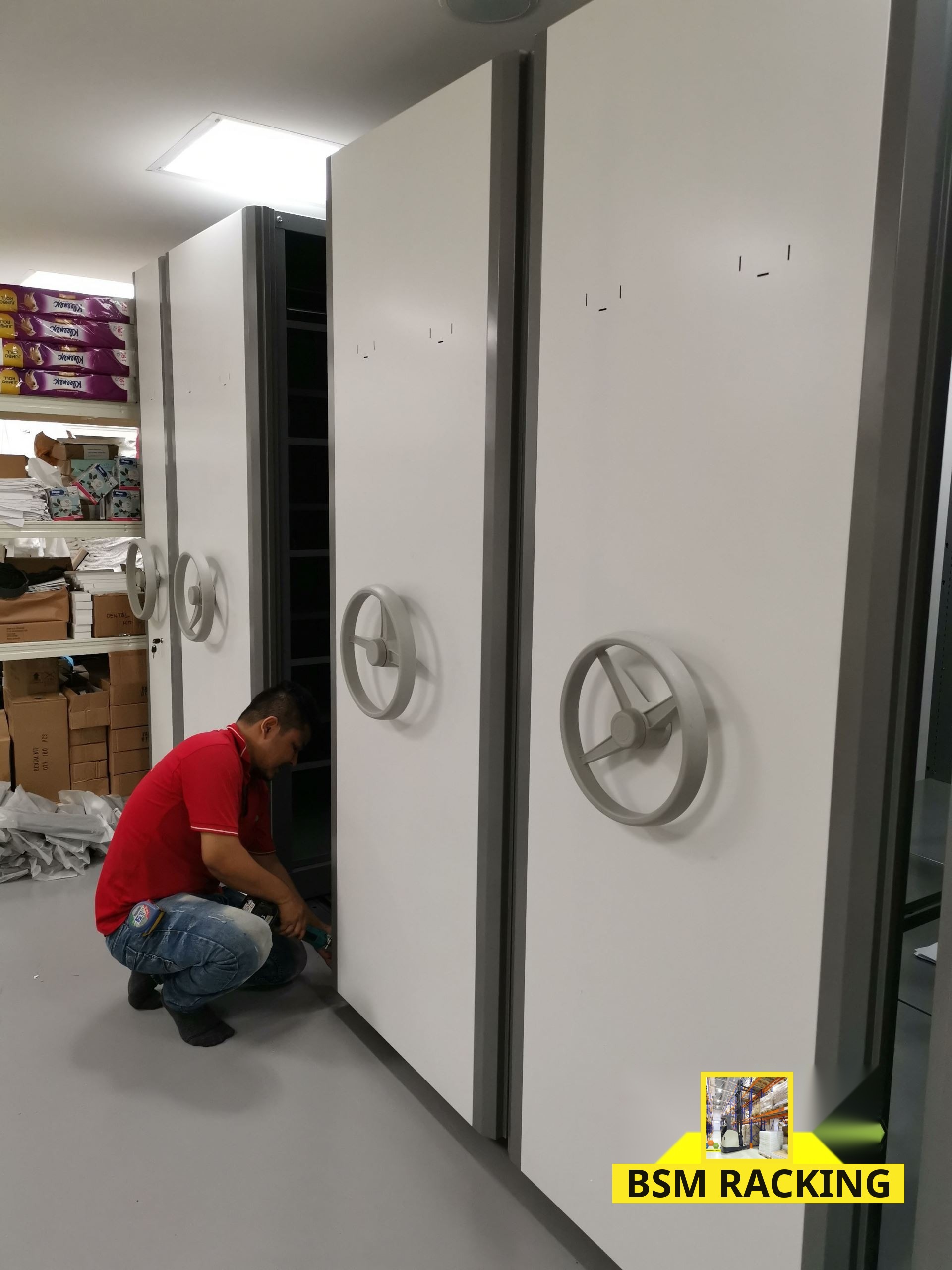

Mobile Compactor mechanical cabinet storage arrangement, project view 7

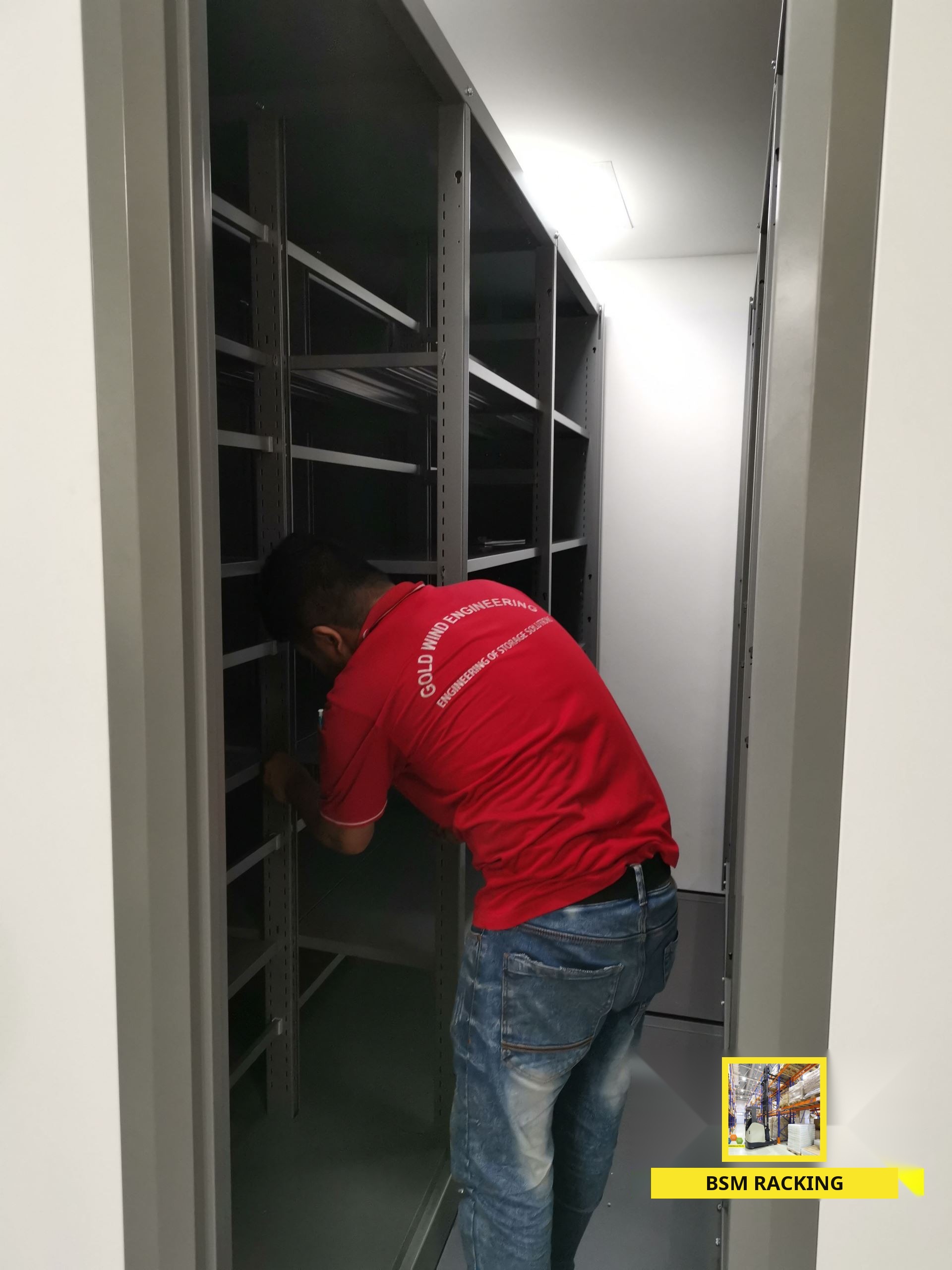

Mobile Compactor mechanical cabinet storage arrangement, project view 8

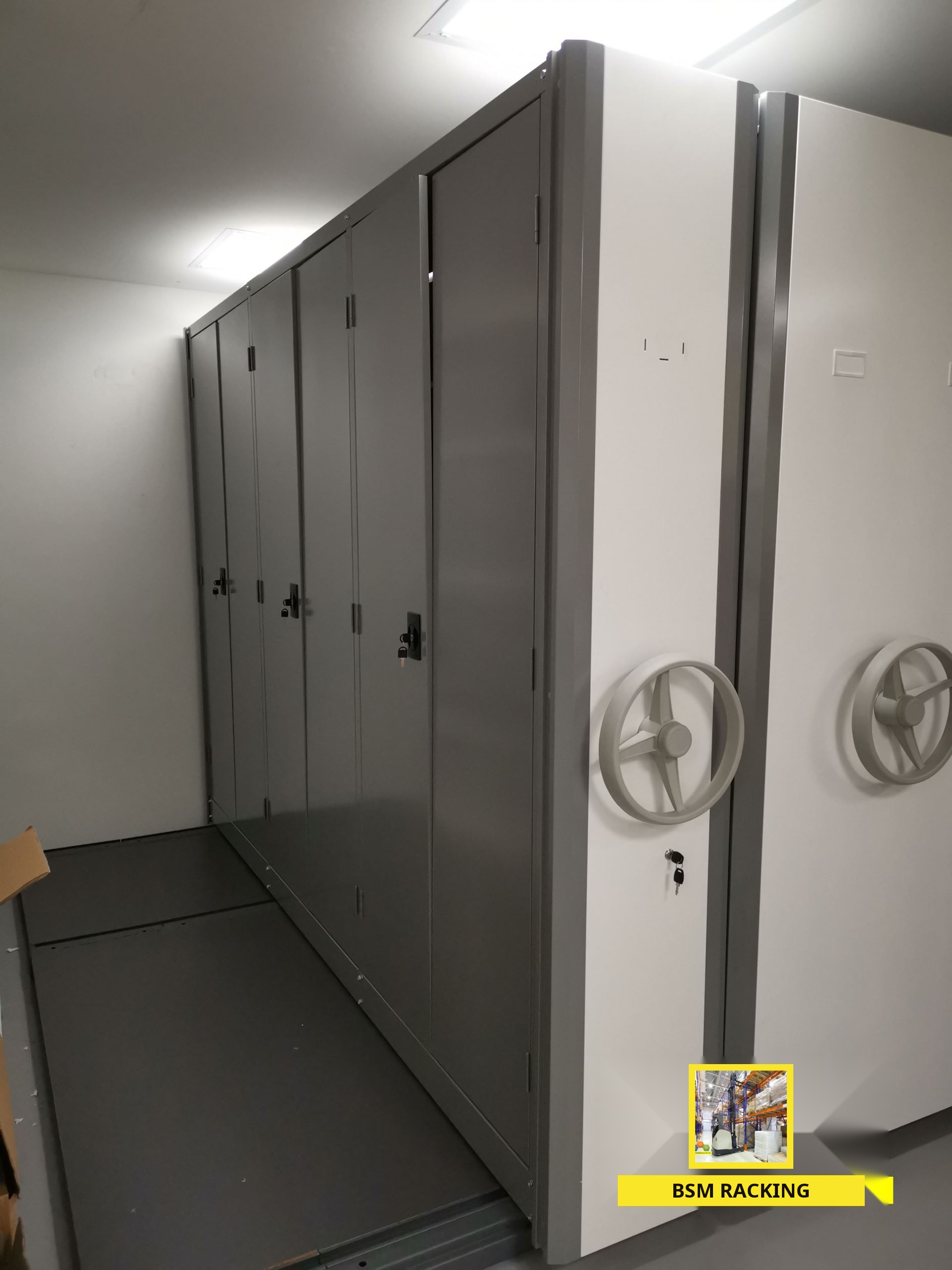

Mobile Compactor mechanical cabinet storage arrangement, project view 9

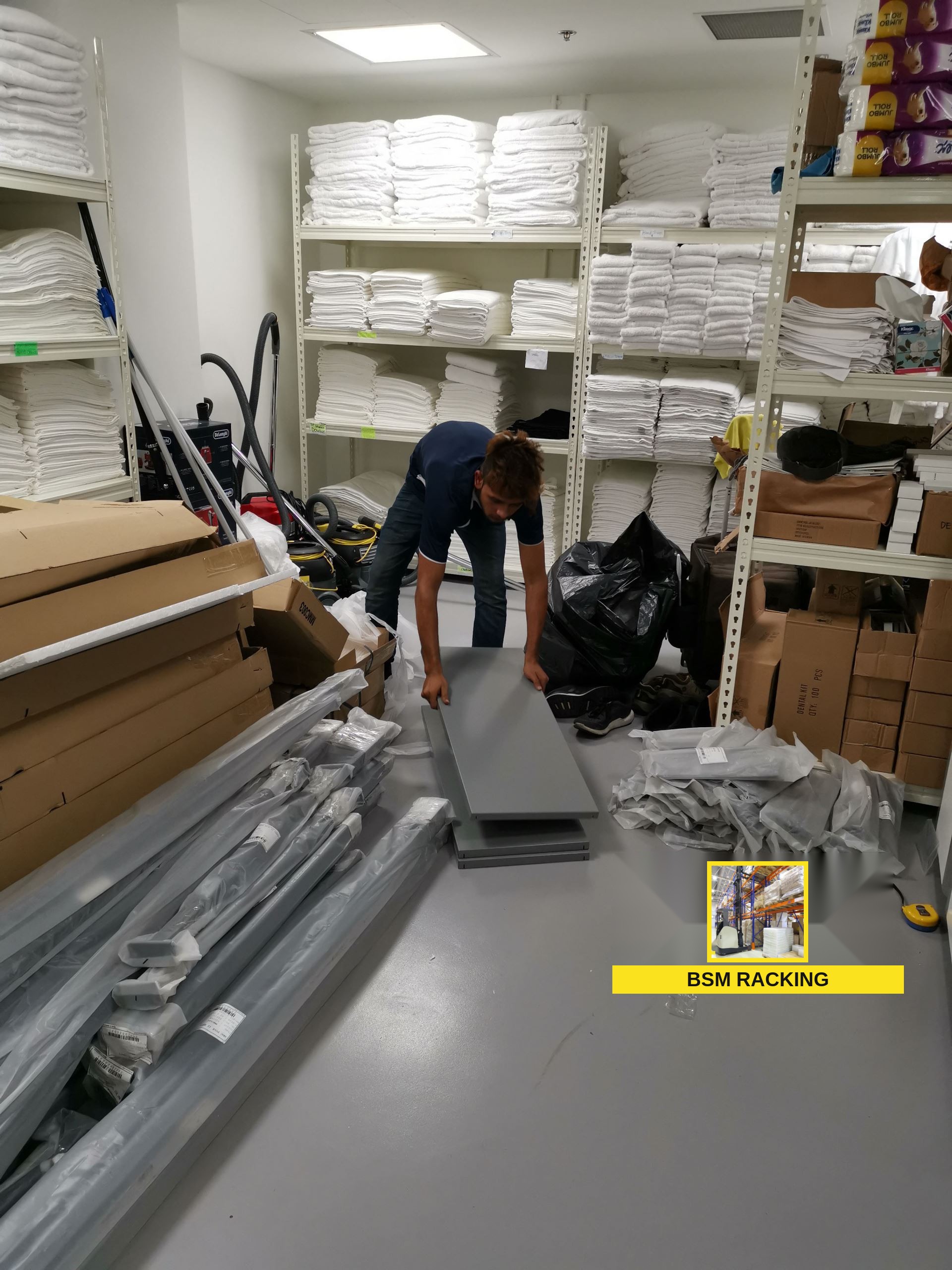

Mobile Compactor mechanical cabinet storage arrangement, project view 10

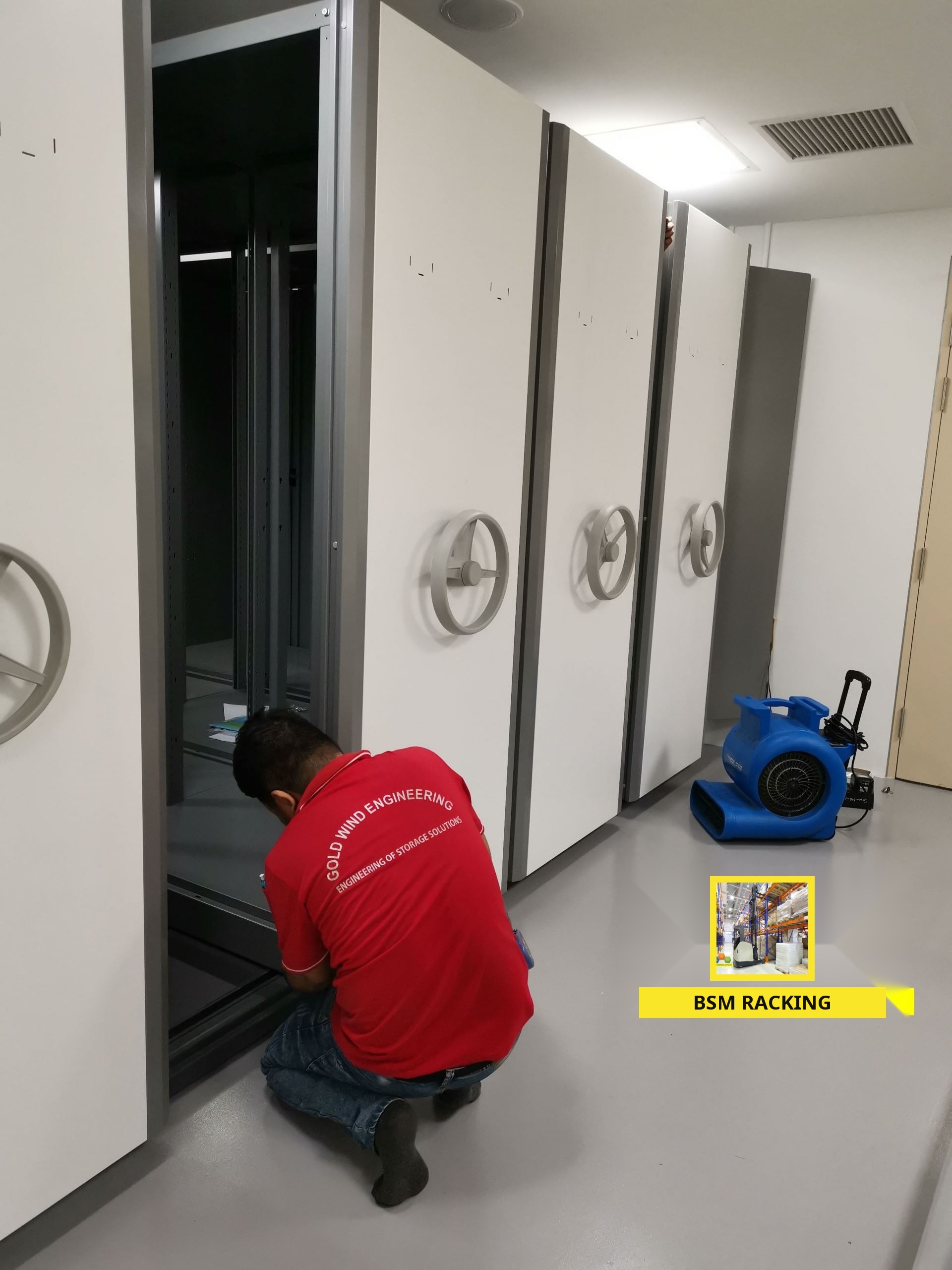

Mobile Compactor mechanical cabinet storage arrangement, project view 11

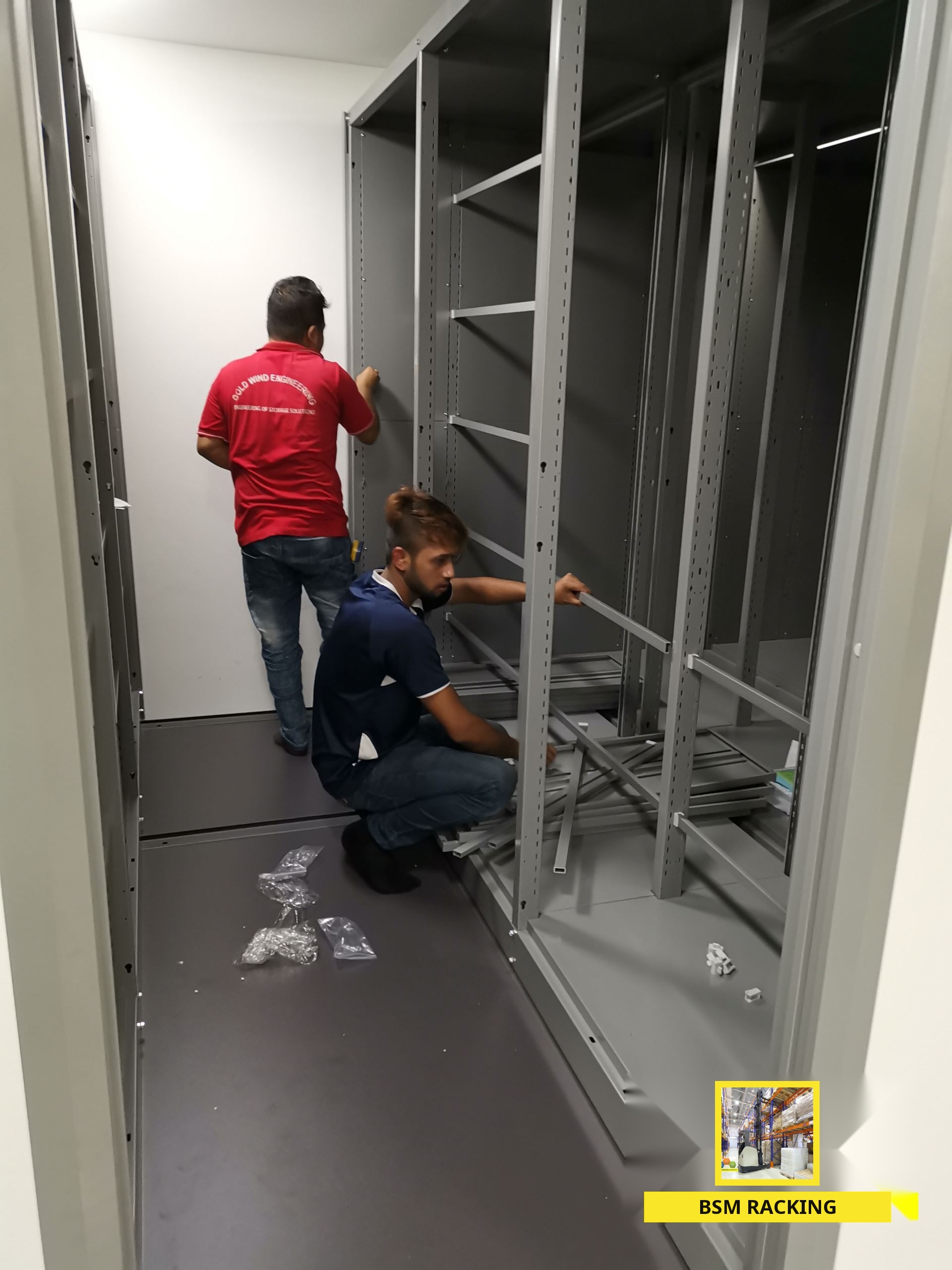

Mobile Compactor mechanical cabinet storage arrangement, project view 12

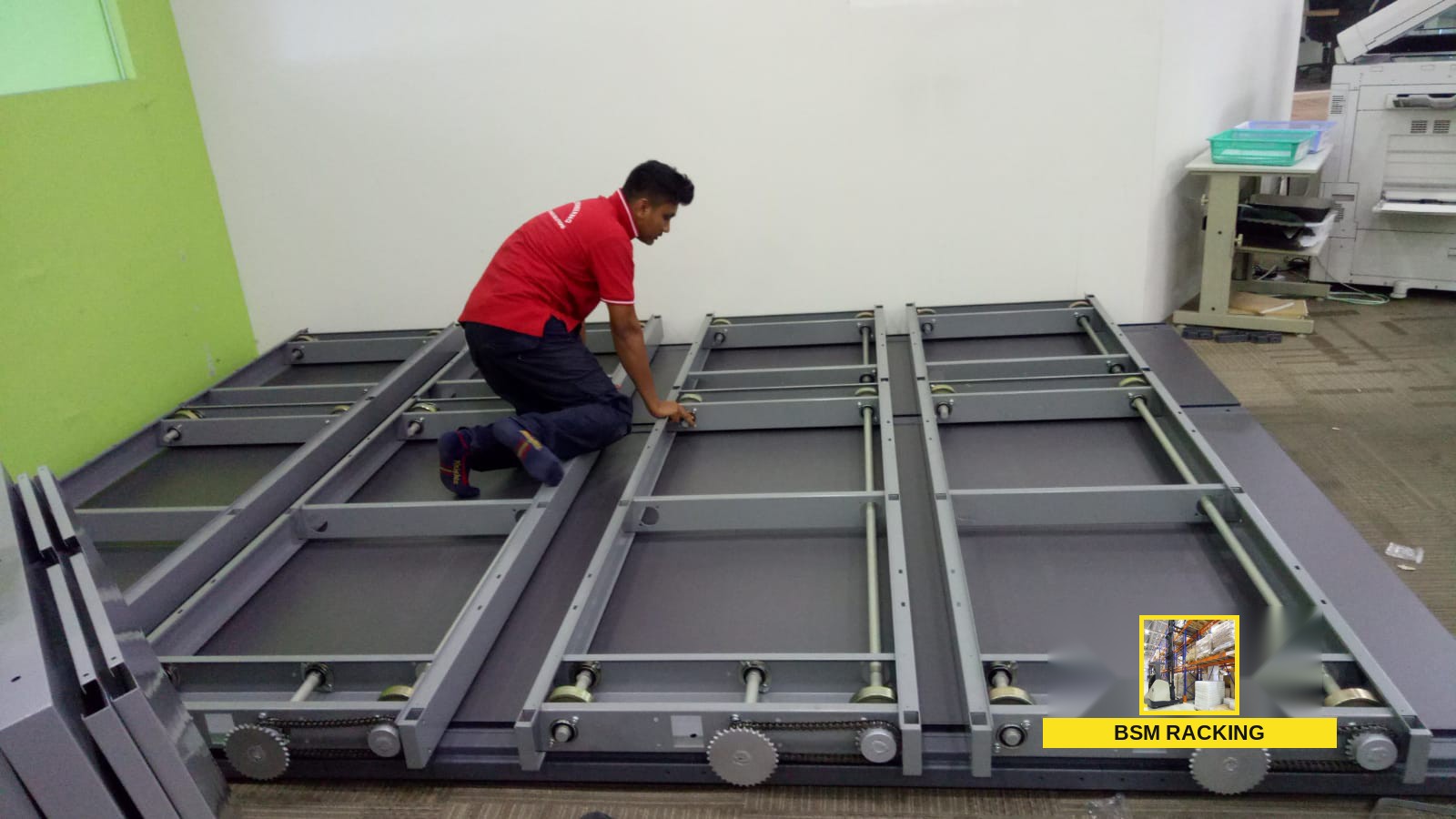

Mobile Compactor mechanical cabinet storage arrangement, project view 13

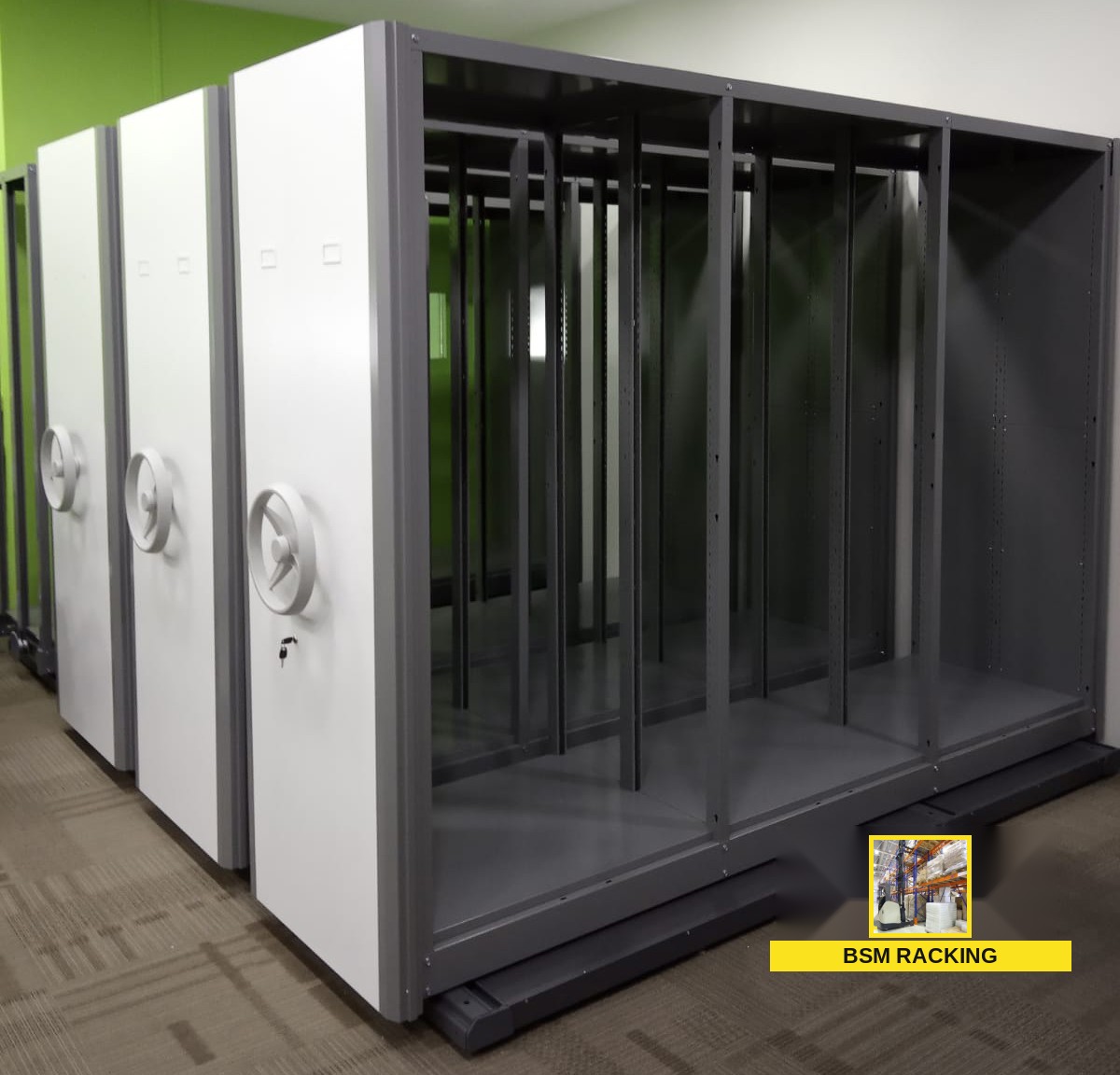

Mobile Compactor mechanical cabinet storage arrangement, project view 14

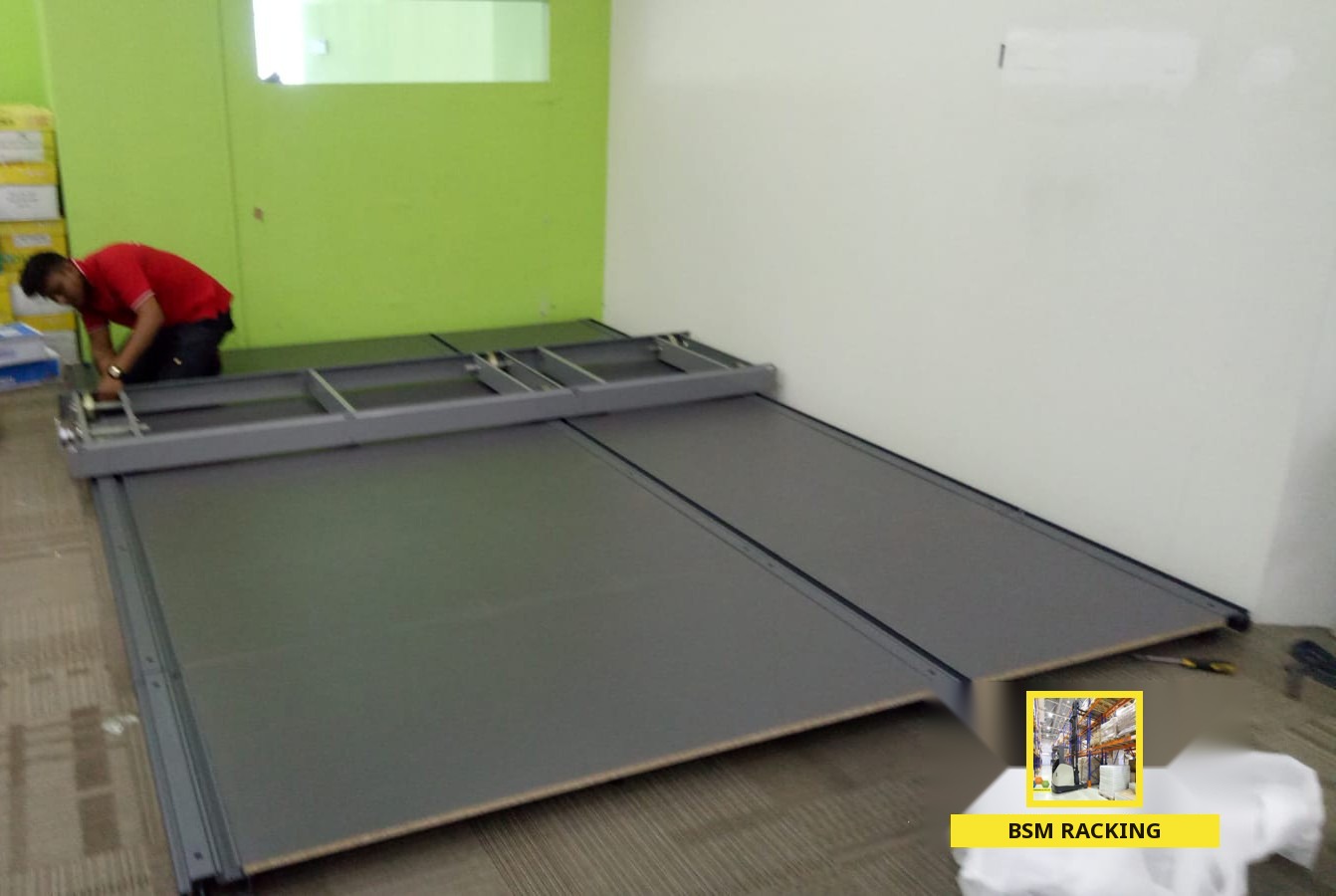

Mobile Compactor mechanical cabinet storage arrangement, project view 15

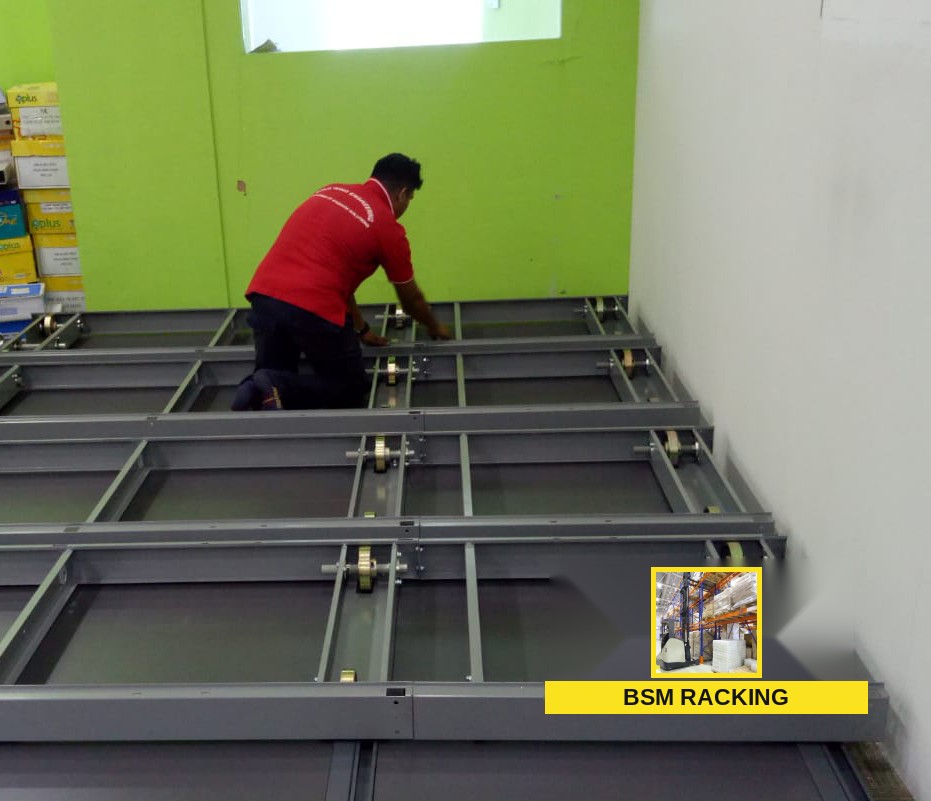

Mobile Compactor mechanical cabinet storage arrangement, project view 16

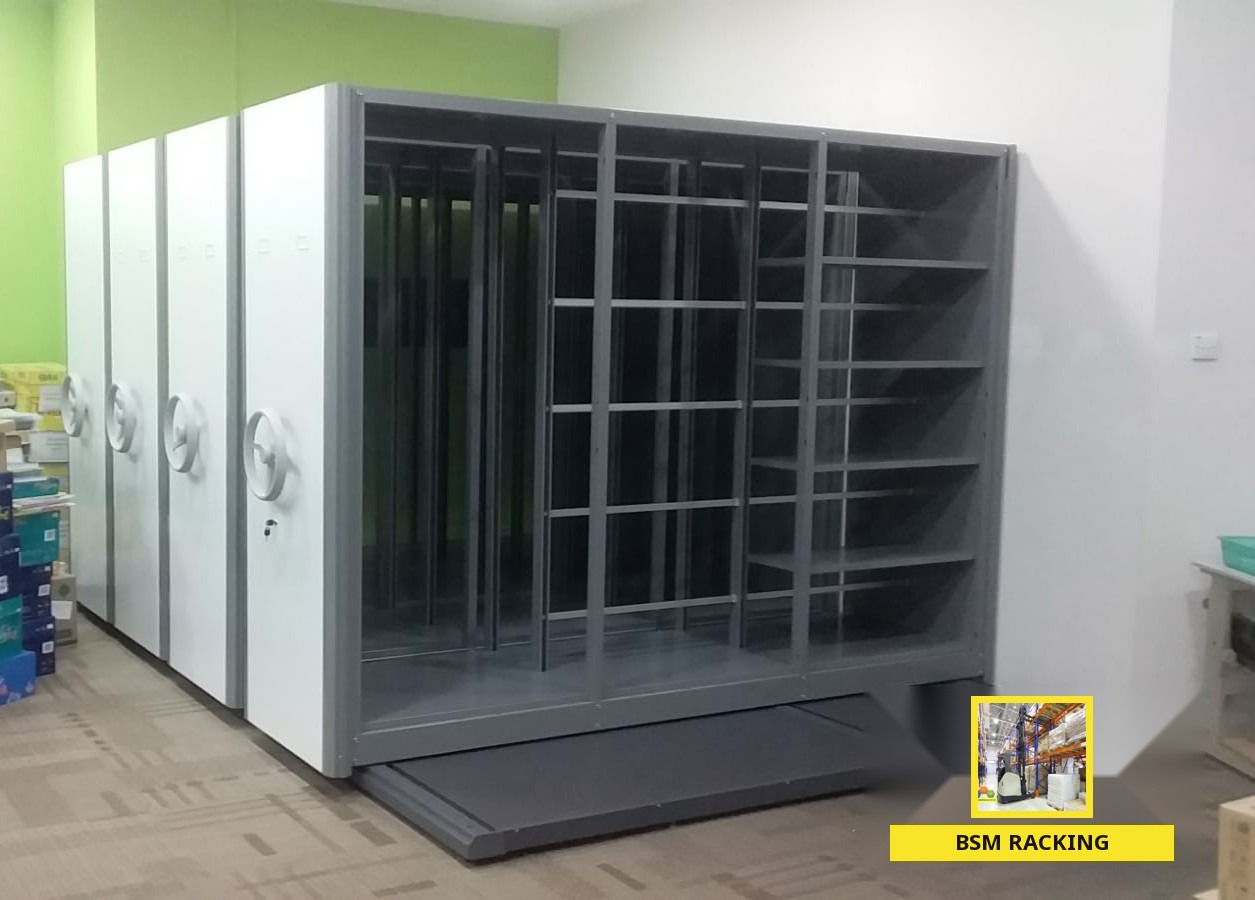

Mobile Compactor mechanical cabinet storage arrangement, project view 17

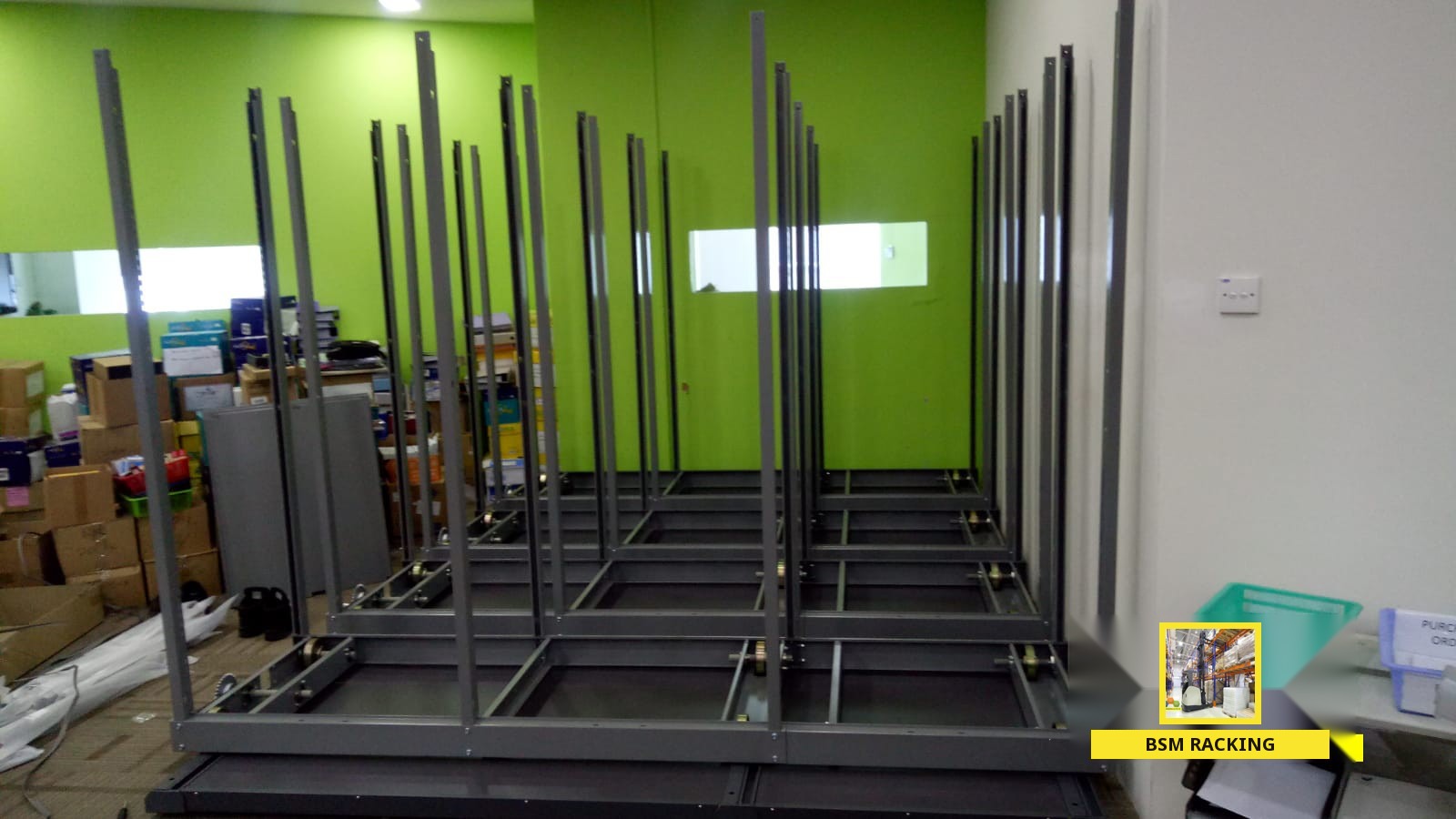

Mobile Compactor mechanical cabinet storage arrangement, project view 18

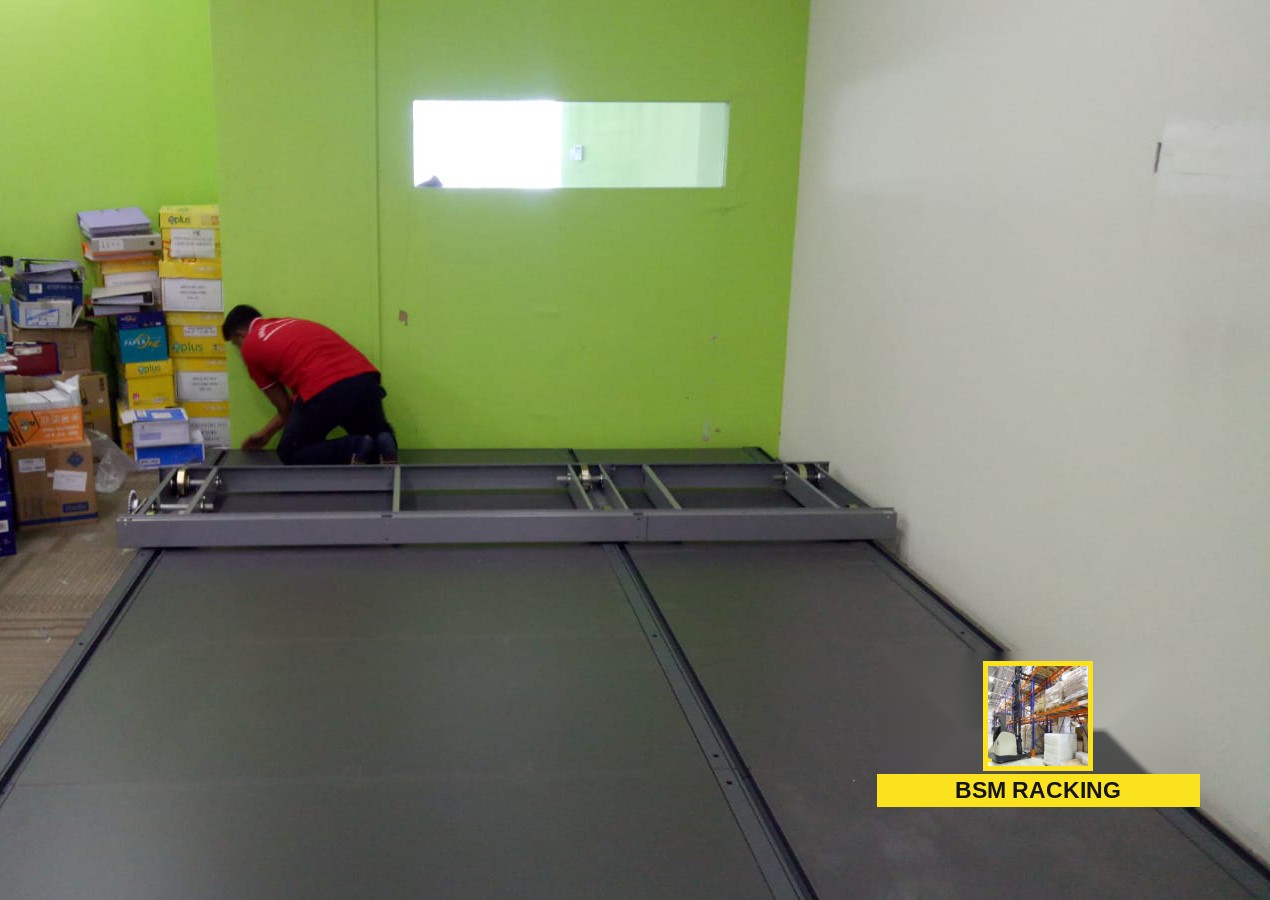

Mobile Compactor mechanical cabinet storage arrangement, project view 19

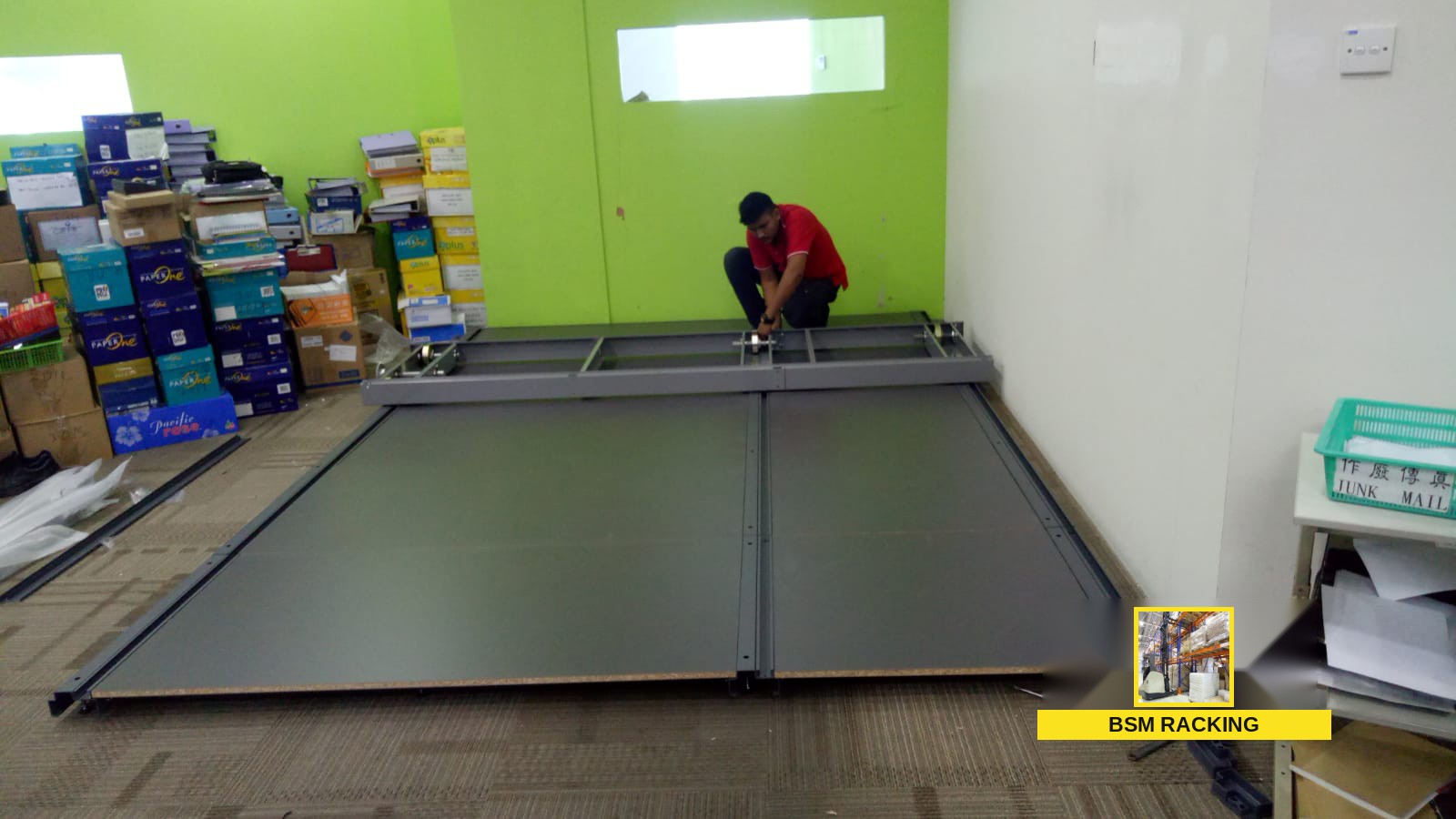

Mobile Compactor mechanical cabinet storage arrangement, project view 20

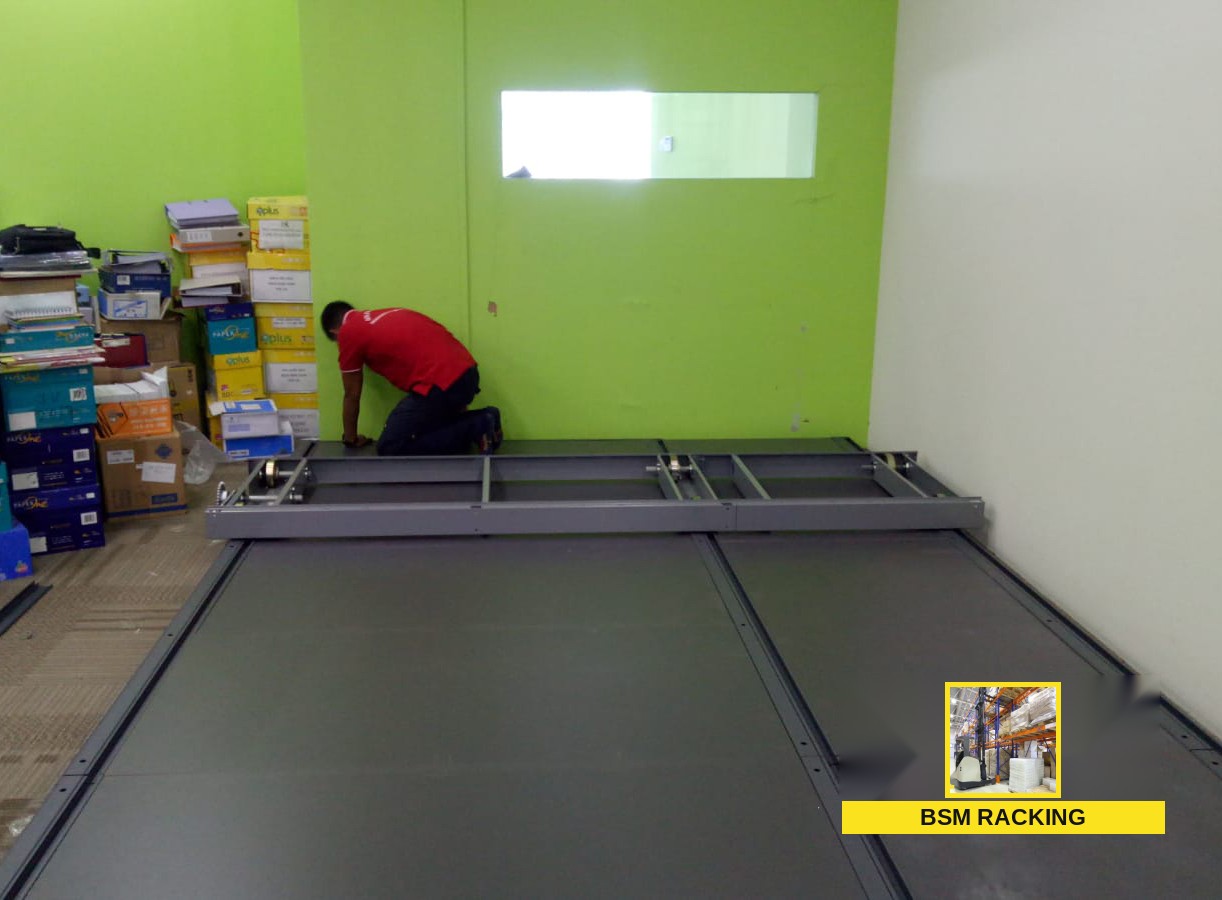

Mobile Compactor mechanical cabinet storage arrangement, project view 21

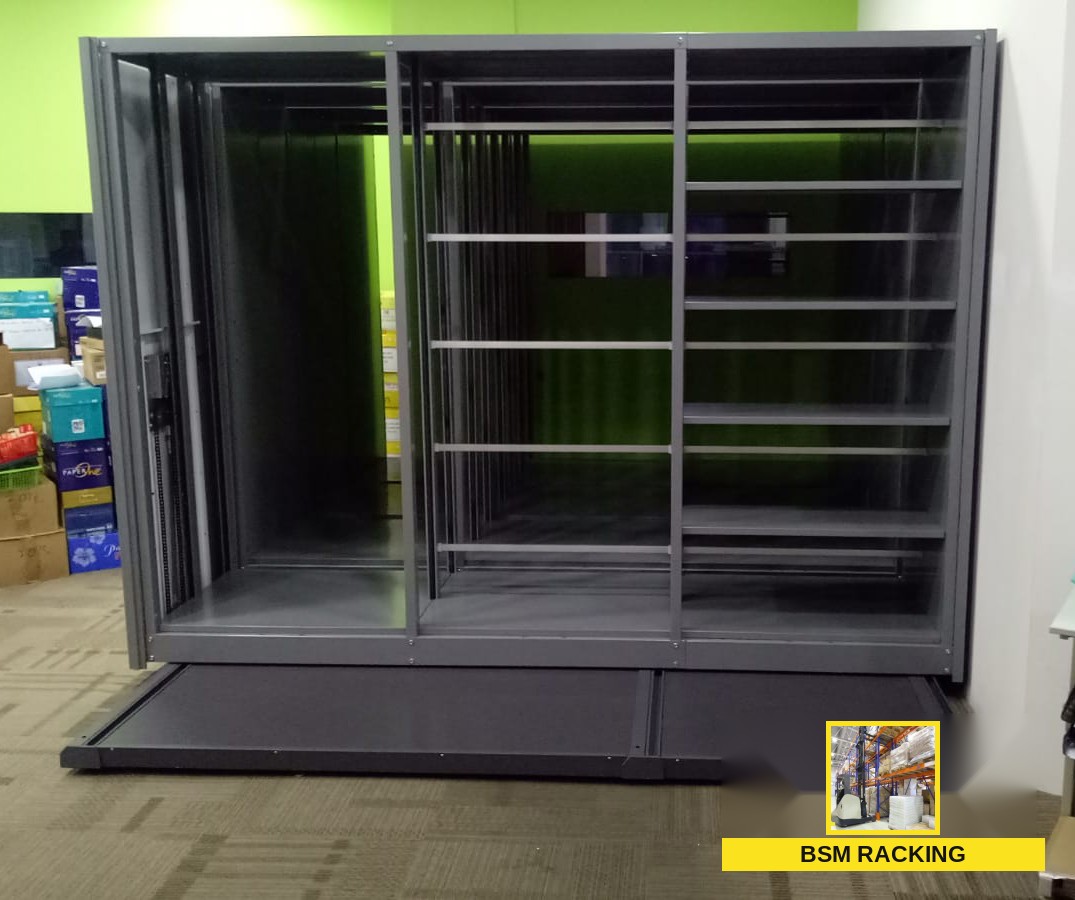

Mobile Compactor mechanical cabinet storage arrangement, project view 22

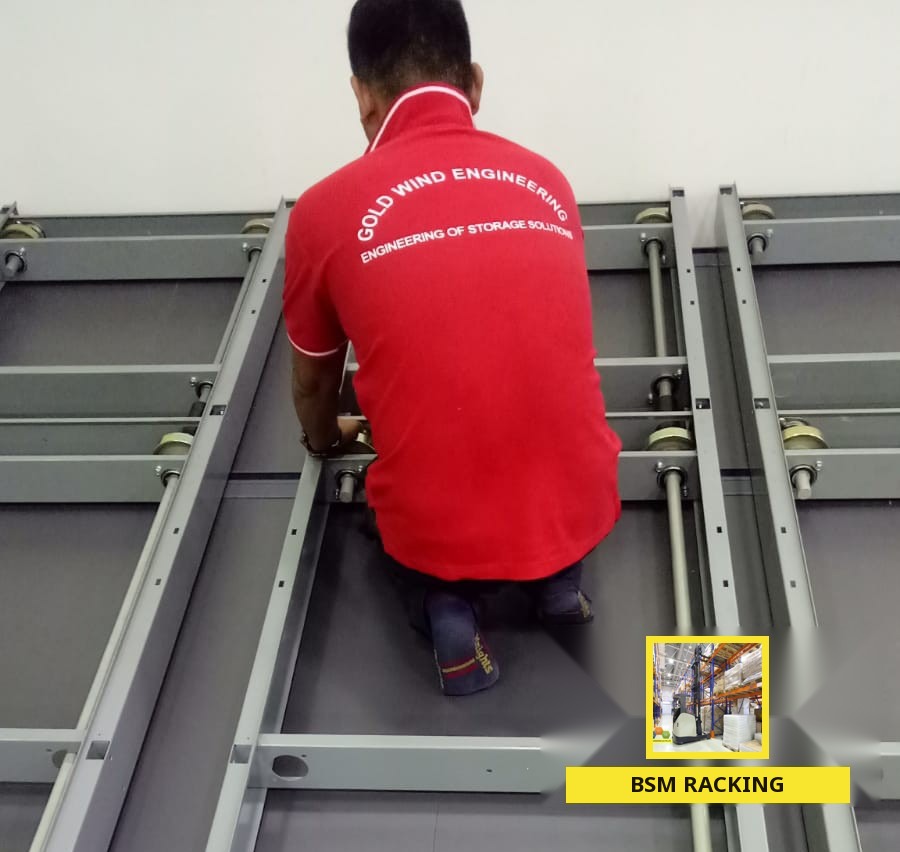

Mobile Compactor mechanical cabinet storage arrangement, project view 23

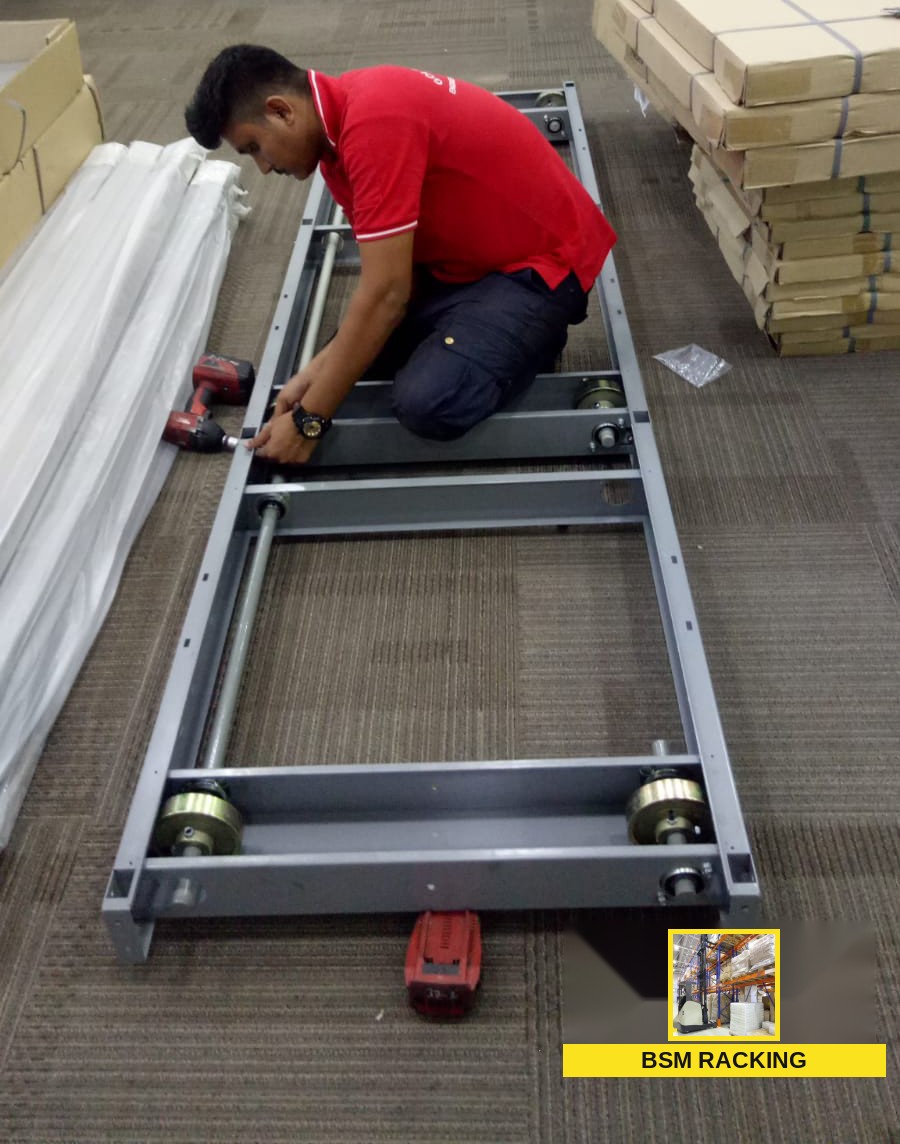

Mobile Compactor mechanical cabinet storage arrangement, project view 24

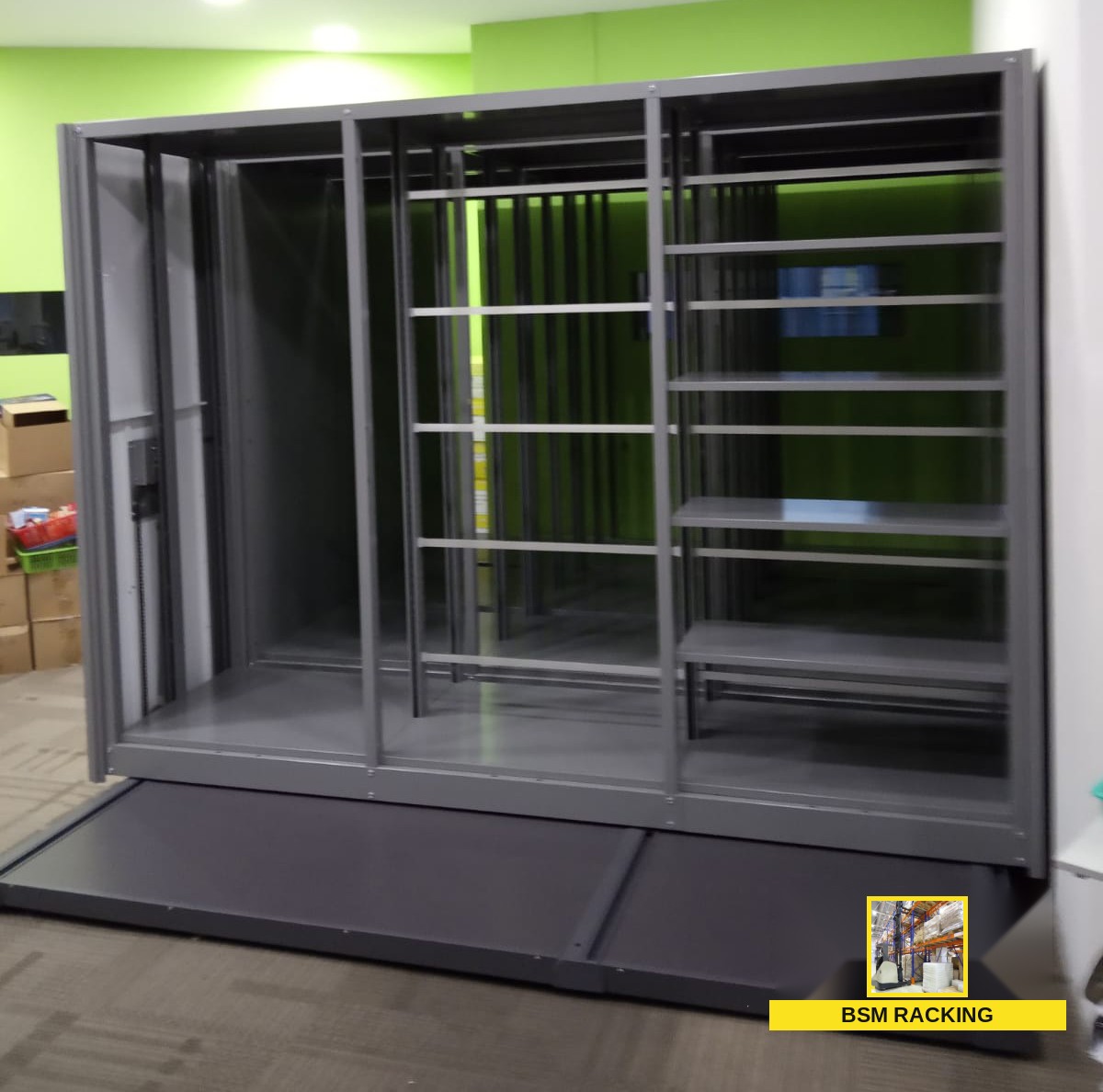

Mobile Compactor mechanical cabinet storage arrangement, project view 25

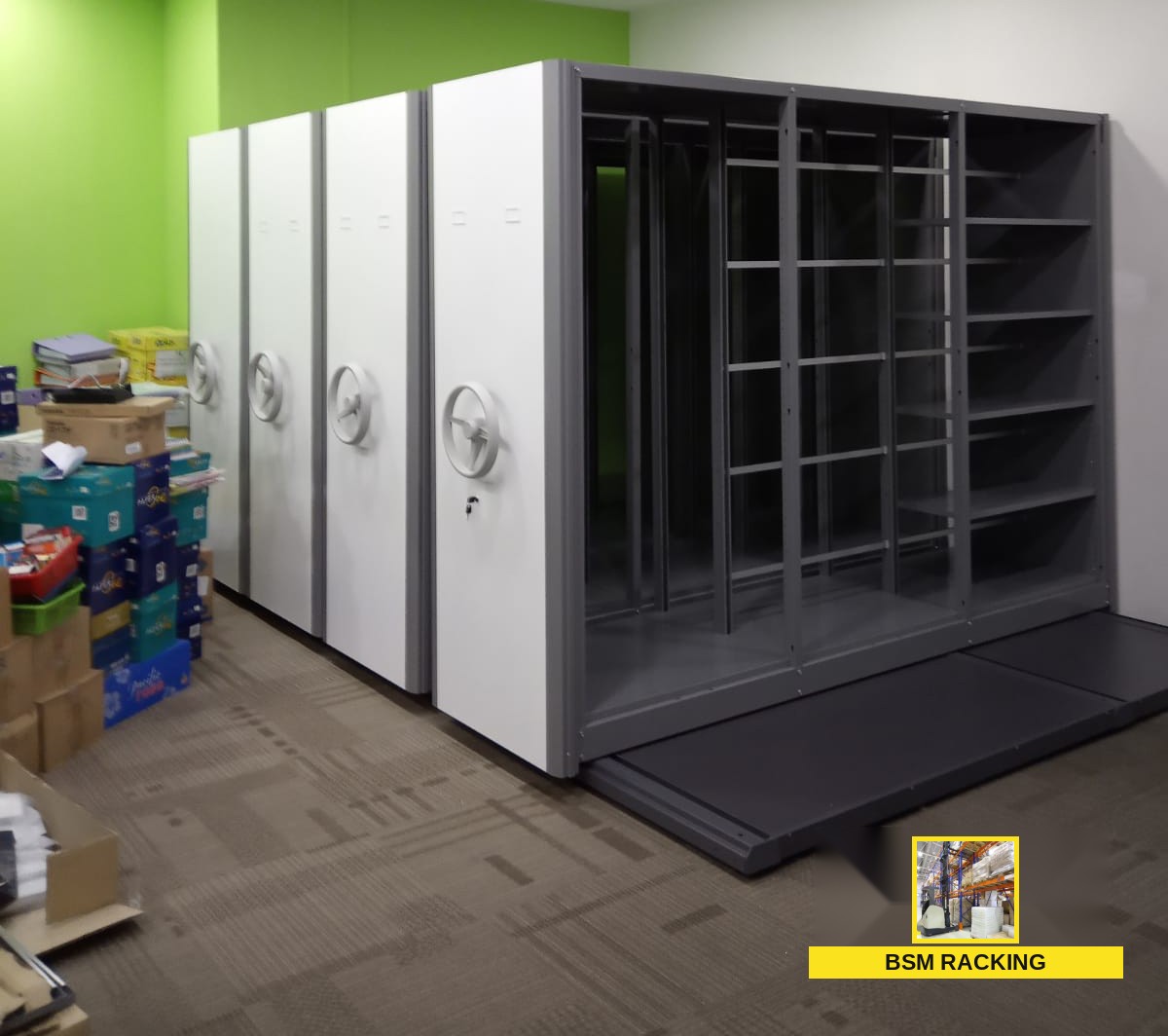

Mobile Compactor mechanical cabinet storage arrangement, project view 26
