Mobile Ladder Trolley (MLT)

Mobile Ladder Trolley (MLT) – Others from BSM Racking Singapore

Others

Mobile Ladder Trolley (MLT)

Mobile Ladder Trolley (MLT) combines transport and platform access for picking at 3–4.5 metres, with a safety bar for warehouse teams in Singapore.

  • Origin: Singapore
  • Materials: Steels
  • Finishing: Epoxy Powder Coated in Blue

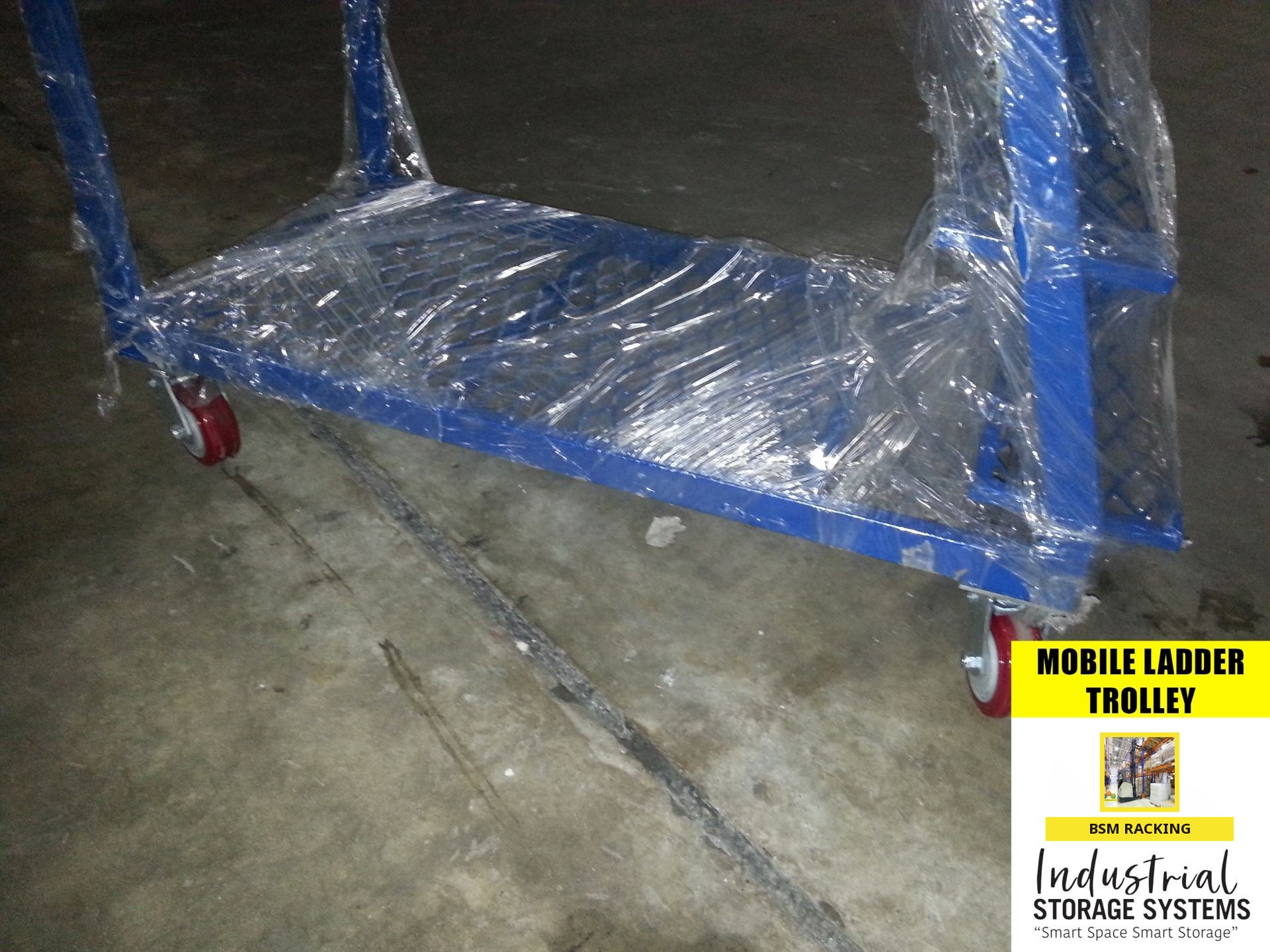

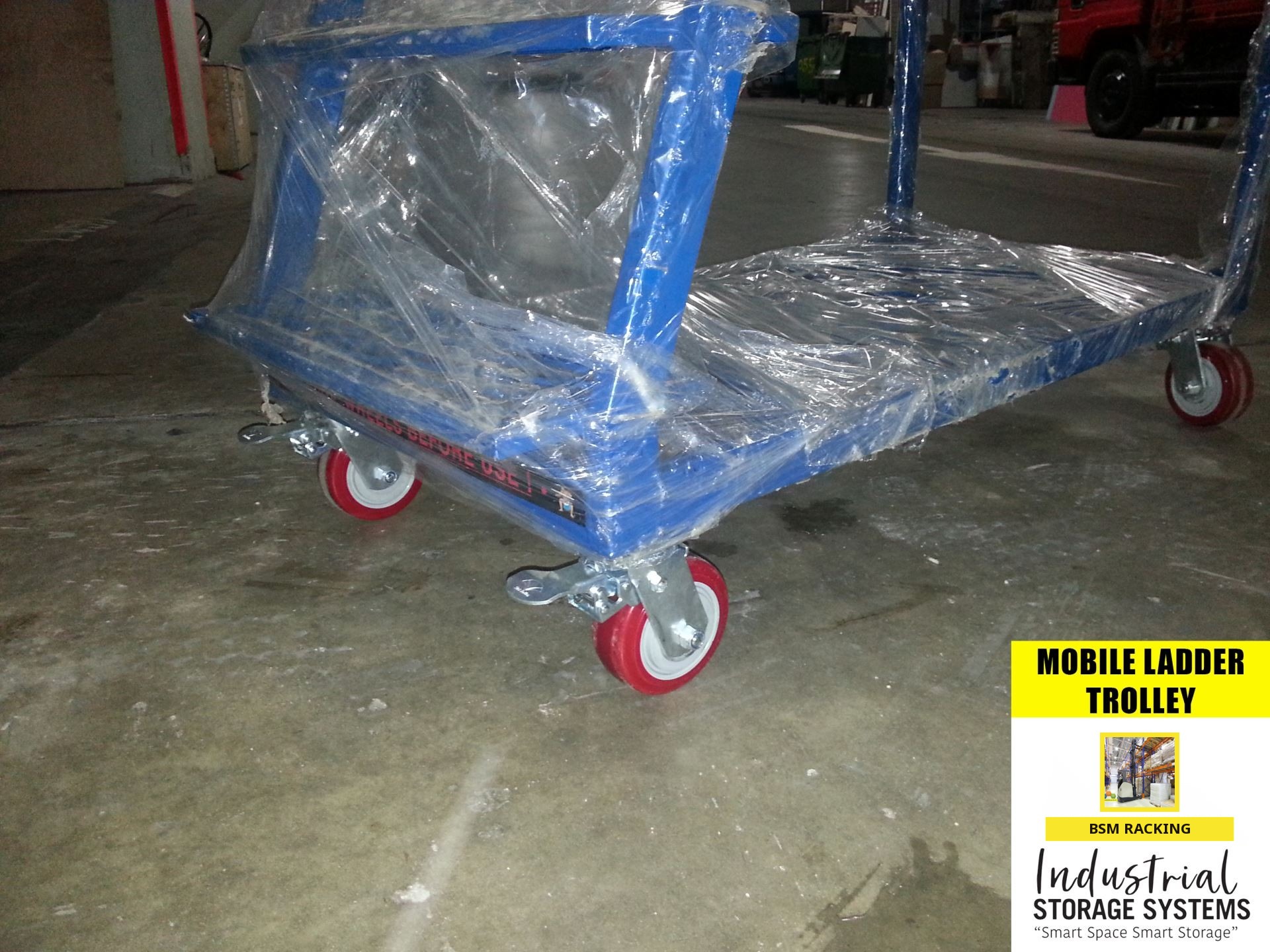

  • Wheel: 5″ PU Cast Iron
  • Loading: Top 150kgs UDL / Bottom 350kgs UDL
  • Capacity: 500 kgs

Product Description

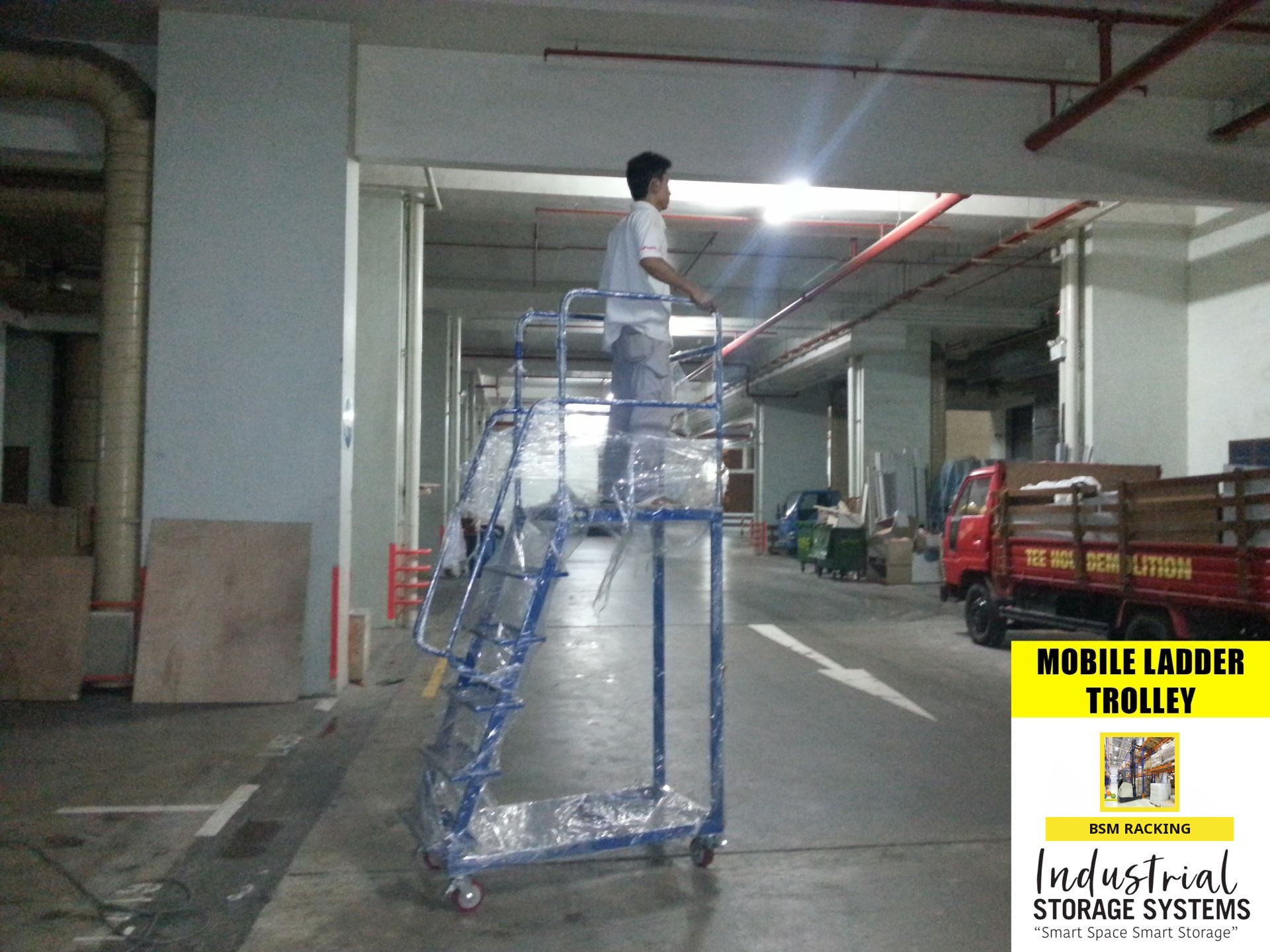

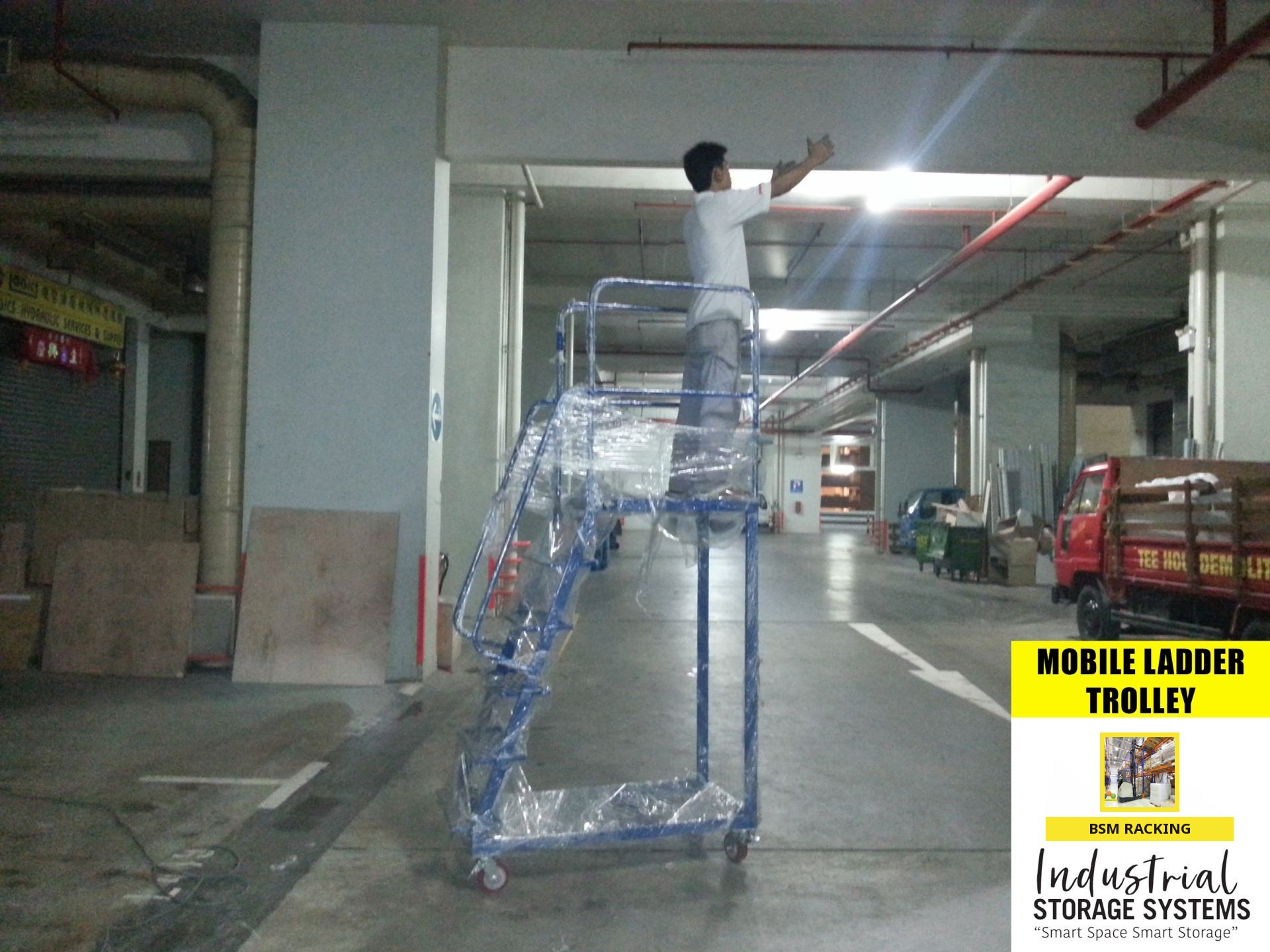

The Mobile Ladder Trolley (MLT) provides a standing platform for goods picking in Singapore warehouses.

With ladder access and trolley functions combined, staff can transport goods and pick stock between 3 ~ 4.5 metres using the same equipment.

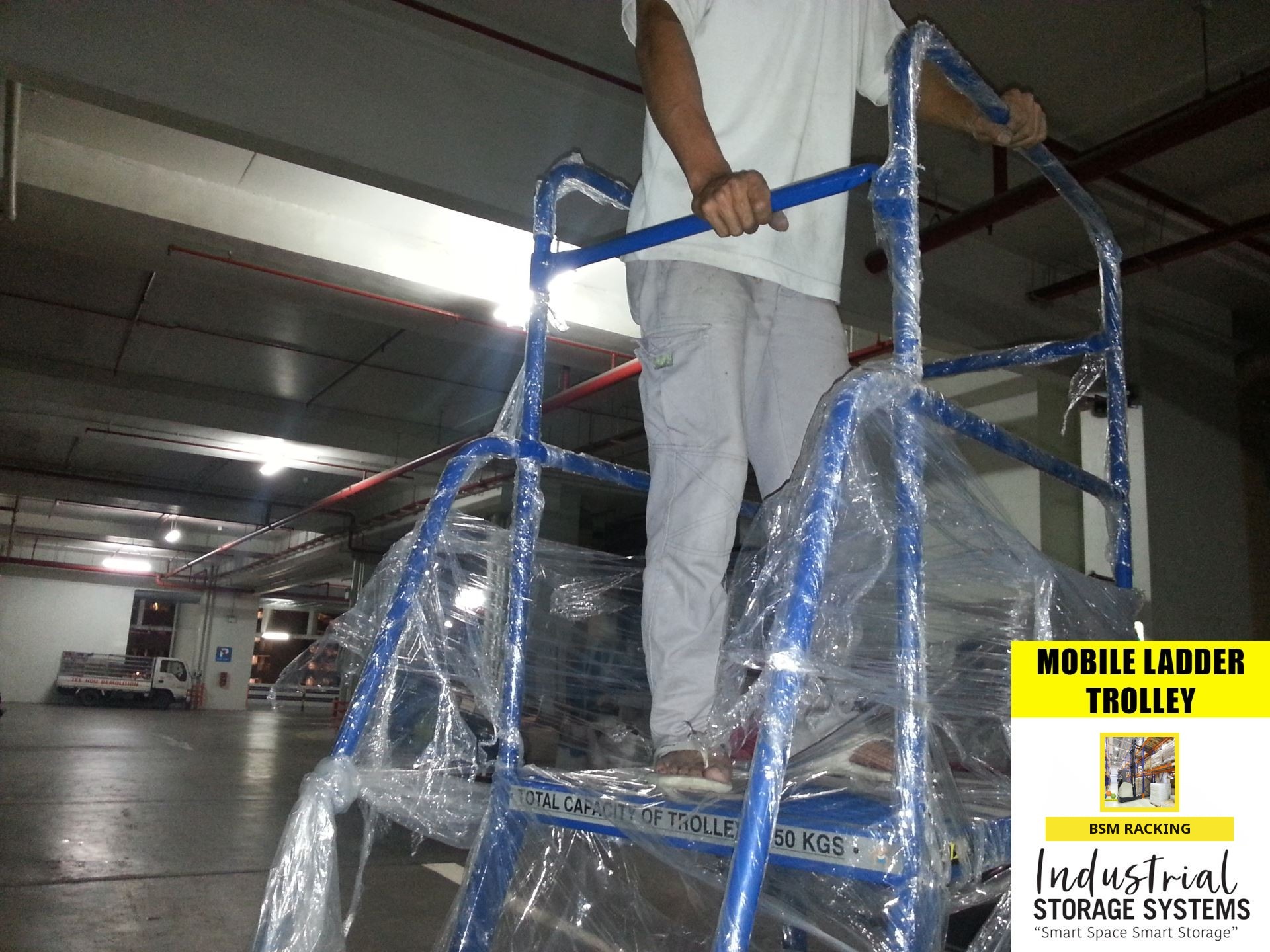

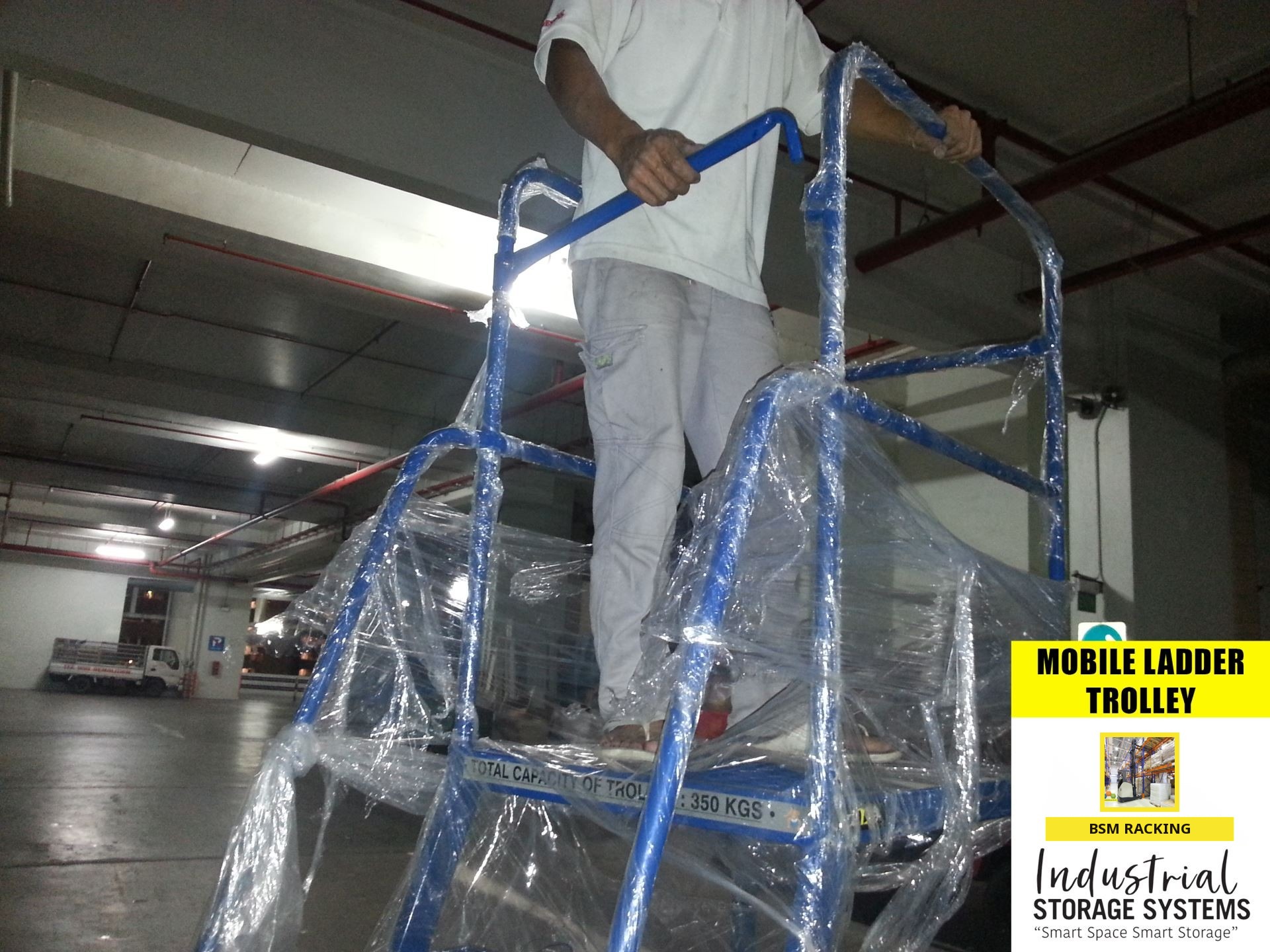

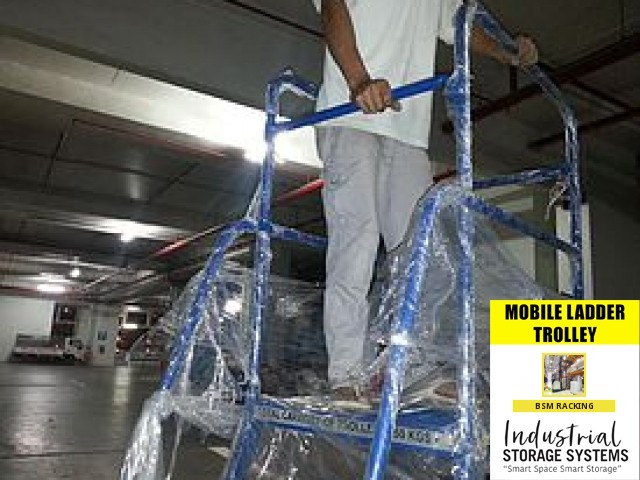

A safety bar helps protect staff against falls while they stand on the platform, reducing the risks associated with elevated picking.
SKU Size (a)
Overall Height
Size (b)
Handrail Height
Size (c)
Internal Store
Size (d)
Width of Ladder
Size (e)
Base Length
Size (f)
Deck Length
Size (g)
Floor to Deck
01-MLT-1600 SET 2594mm 916mm 1522mm 760mm 1269mm 750mm 1691mm
01-MLT-1900 SET 2868mm 916mm 1903mm 760mm 1369mm 750mm 1966mm
01-MLT-2200 SET 3144mm 916mm 1970mm 760mm 1469mm 750mm 2241mm
01-MLT-2500 SET 3434mm 916mm 2310mm 760mm 1569mm 750mm 2518mm
01-MLT-2700 SET 3707mm 916mm 2520mm 760mm 1669mm 750mm 2791mm
01-MLT-3000 SET 3982mm 916mm 2795mm 760mm 1769mm 750mm 3066mm

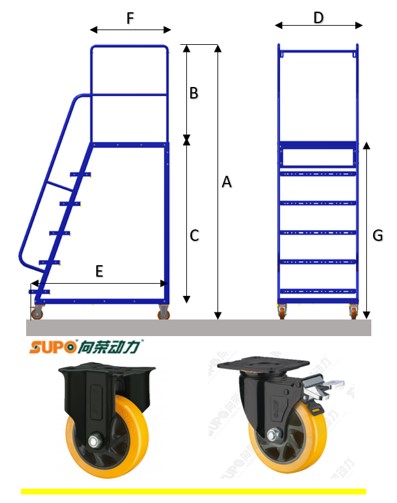

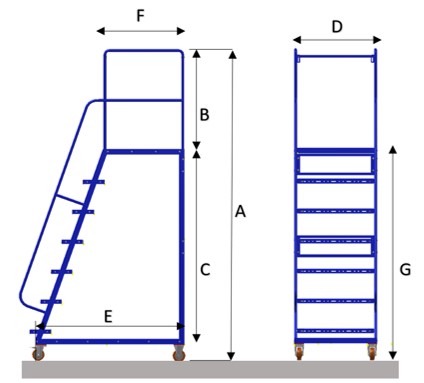

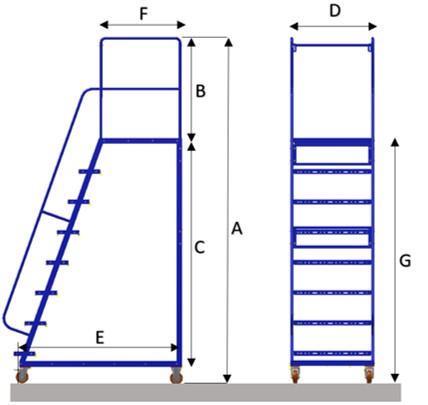

Mobile Ladder Trolley (MLT) — 5-step configuration Mobile Ladder Trolley (MLT) — 6-step configuration Mobile Ladder Trolley (MLT) — 7-step configuration
5-step configuration of the Mobile Ladder Trolley 6-step configuration of the Mobile Ladder Trolley 7-step configuration of the Mobile Ladder Trolley

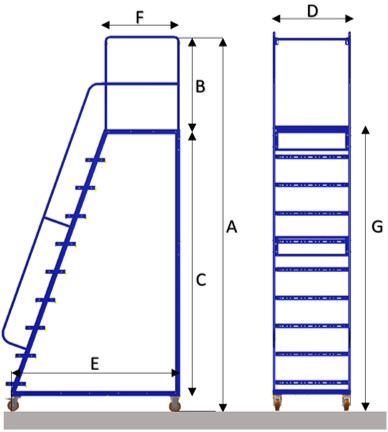

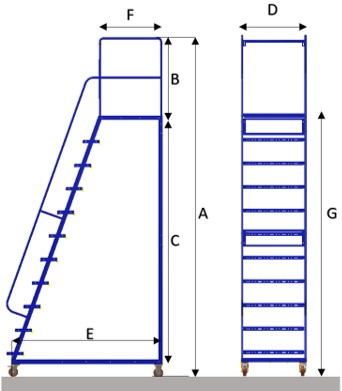

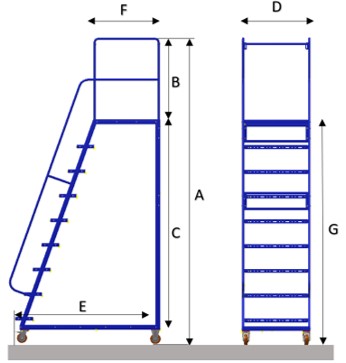

Mobile Ladder Trolley (MLT) — 8-step configuration Mobile Ladder Trolley (MLT) — 9-step configuration Mobile Ladder Trolley (MLT) — 10-step configuration
8-step configuration of the Mobile Ladder Trolley 9-step configuration of the Mobile Ladder Trolley 10-step configuration of the Mobile Ladder Trolley
