Rear Mesh

Rear Mesh – Safety from BSM Racking Singapore

Safety

Rear Mesh

Rear Mesh from BSM Racking helps stop goods falling from pallet racks, protecting people and stock while improving storage areas in Singapore.

Product Description

A safer installation with straightforward assembly.

BSM Racking Rear Mesh is designed to stop stored goods dropping from pallet racks, helping protect personnel and the stock below. These steel mesh guards can be attached along either the back or the sides of the racking in Singapore warehouses.

Installers normally work from outside the rack, using clamps and sheet metal screws to assemble the panels quickly. Bolting the panels together creates the required overall width and height. Heights are offered in 50 x 50 mm intervals; end panels are trimmed to width on site and completed with brackets that connect them to the racking.

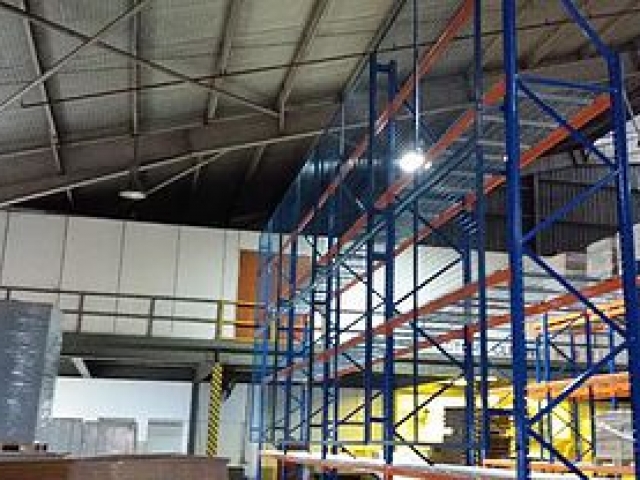

Rear Mesh guarding for the back of pallet racking Rear Mesh panel arrangement for rack protection

How Rear Mesh Protects Your Storage Area

  • Help prevent injuries caused by small items dropping from racks
  • Protect property against falling goods
  • Give the storage area a tidier appearance

SKU 01-RM-2027
Size 2000mm (h) x 2700mm (W)
Frame work Angle Bar 50 x 50 x 3.0mm Thk
Colour Blue (Roller Painted)
Connection M10 x 20 Bolt & Nuts Connect to back of the racks
Mesh Grid 50mm x 50mm x 3.0mm (10g)
Center Bar 38mm x 38mm x 3.0mm x 2 pcs (Reinforcement)
Rear Mesh 01-RM-2027 panel with reinforcement bars

SKU 01-RM-2013
Size 2000mm (h) x 1350mm (W)
Frame work Angle Bar 50 x 50 x 3.0mm Thk
Colour Blue (Roller Painted)
Connection M10 x 20 Bolt & Nuts Connect to back of the racks
Mesh Grid 50mm x 50mm x 3.0mm (10g)
Center Bar No
Rear Mesh 01-RM-2013 panel without a centre bar
